Best ST-60 60Pcs/Min France Model Fully Automatic Cream Lotion Toothpaste Hair-dye Gel Tube Filling and Sealing Machine (Works for Plastic & Laminated & Aluminum Tube) Factory, Factories

This machine is a high technical equipment with successfully and designed by introducing into advanced overseas technology and integrating GMP requirement,with features of fair structure,full function, easy operation,accurate filling,stable running,as well as low noise. Speed with 60Pcs/Min;

Send Inquiry

Product Description

The product is suitable for automatic color code aligning, filling, sealing, date printing and end cutting of various plastic tubes and aluminum composite tubes. It is widely applied in daily chemical industry, medicine, food, etc.

Advantage on ST-60 Tube Filling Machine

Safety First: Equipped with an Italy torque clutch to effectively protect the machine and workers during abnormal operations. Japan safety operation handle is used instead of a simple button.
Mechanical Design: Pure mechanical design for easy maintenance and repair, featuring omni-directional security doors.
GMP Compliance: No pollution design with French-material filling nozzles and a unique cutting design to ensure zero leaking.
High Precision & Stability: Italian driver combined with Japanese Sanyo stepping system ensures accurate color calibration.
Premium Parts: 1:1 follow-up on European machine standards using brands like Festo for pneumatic parts.

Global Applications

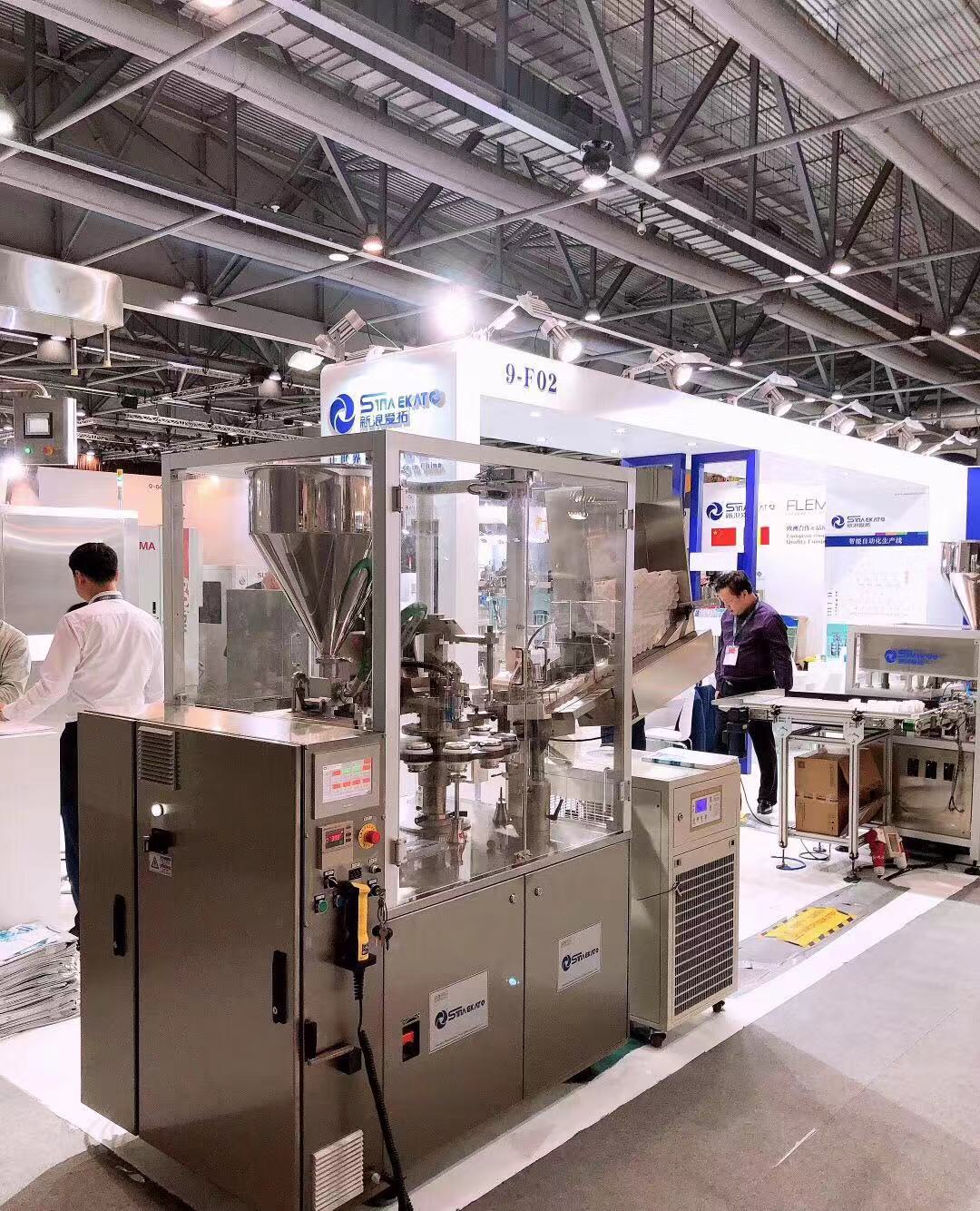

USA Customer Using Situation

Products successfully exported to USA, JAPAN, DUBAI, PAKISTAN, and other countries.

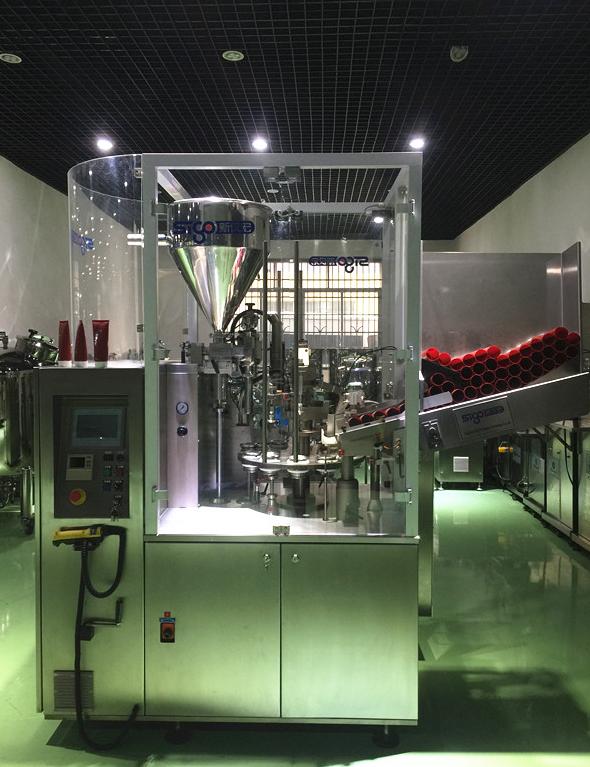

Japan Factory Using Situation

Technical Specifications

Filling Volume: 1-400ml

Filling Speed: ~60pcs/min

Precision: ≤±1%

Tube Diameter: Φ16-50mm (Max 55mm)

Tube Length: Max 200mm-210mm

Hopper Capacity: 45L

Air Pressure: 0.5-0.7 MPa

Voltage: 380V / 50Hz 3Phase

Main Power: 5.5 KW

Output: 3600 tubes/hour

Automatic Operation Workflow

Tube transfer into the tube-holder
Automatic orientation according to the spot
Precision Tube filling
Counting of filled tubes
Secure Tube sealing
Marking of code on the sealing
Ejection of the finished tubes

Key Component List

Name	Original	Feature
Motor Reductor	Germany	Transmission
Cam indexers	Japan	Transmission
Torsion Limiter	Italy	Transmission
Adjust-speed motor	Japan	Discharge tube
Linear Slide Rail	Japan	Multifunctional pieces
Knuckle Bearing	Sweden	Multifunctional pieces
Pneumatic parts	Germany	Festo Quality

GZF-S Semi-auto Cream Lotion Toothpaste Hair-dye Gel Tube Filling and Sealing Machine

Cartoning Machine

Frequently Asked Questions

Q1: What materials can the ST-60 tube filling machine handle?

The machine is suitable for various plastic tubes and aluminum composite tubes, commonly used for products like cream, lotion, gel, and toothpaste.

Q2: What is the maximum production speed of the machine?

The filling speed is around 60 pieces per minute, resulting in an output of approximately 3600 tubes per hour, depending on tube size and product viscosity.

Q3: How does the machine ensure operator safety?

The machine follows EU CE standards and features an Italian torque clutch to prevent crashes and a Japanese safety handle to minimize operational risks.

Q4: What is the filling precision level?

The machine offers high precision with an error margin of ≤±1%, ensuring consistent product volume across all tubes.

Q5: Can the machine handle different tube diameters?

Yes, it can accommodate tube diameters ranging from 16mm to 50mm (Max 55mm) by changing the molds or cylinder holders.

Q6: Are the machine components durable and high-quality?

Yes, we use 1:1 European standard designs including German pneumatic parts, Italian drives, and Japanese stepping motors for maximum reliability.
