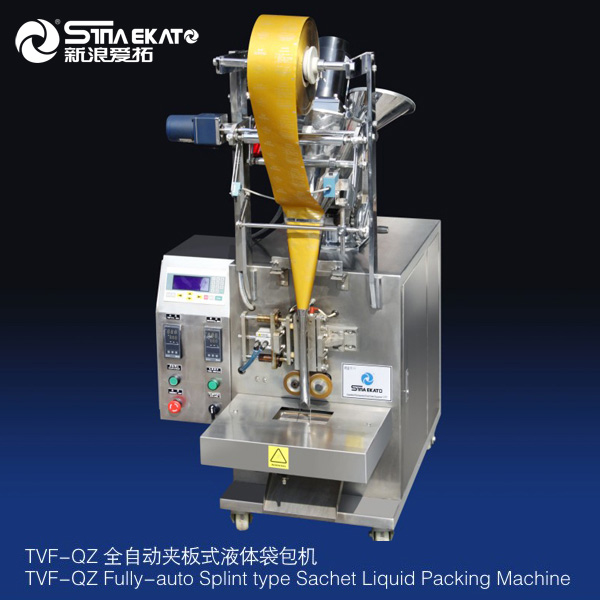

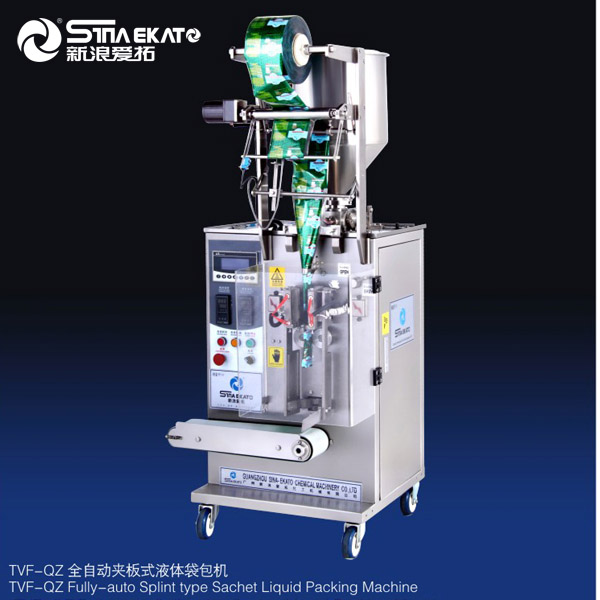

Discount TVF-QZ Splint Type Sachet Packing Machine Cream Lotion Shampoo Conditioner Small Packets Machine Supplier, Factory

Product Description

Packing Machine View 1
Packing Machine View 2
Packing Machine View 3

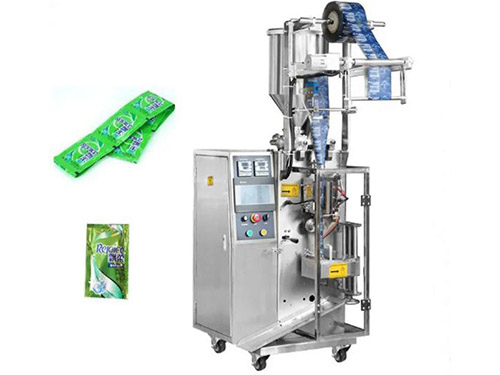

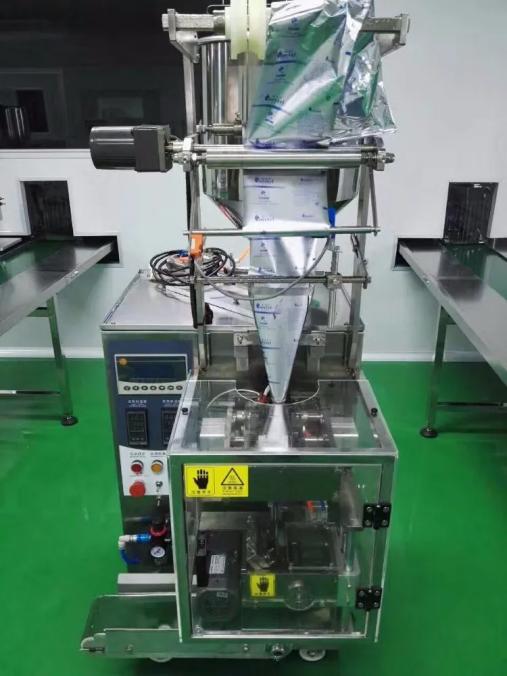

This Sachet packing machine is widely used to pack milk, soybean milk, sauce, vinegar, yellow wine, and all kinds of drinks with film. The whole process can be accomplished automatically, including ultraviolet sterilization, bag figuration, date printing, quantitative filling, enveloping, cutting, and counting. The temperature of heat-sealing is controlled automatically, ensuring the production is both aesthetic and fast. The machine adopts a stainless steel shell to guarantee hygiene standards. It can be equipped with a glass cover, ribbon coder, and UV sterilizer.

Technical Specifications
ModelModel-Y50
Material ApplicationShampoo / Conditioner / Cream / Lotion / Perfume / Hand sanitizer
Packing Weight1-50 ML (Customizable)
Bag Size90 * 120MM (Customizable)
Film Width180MM (Customizable)
Bag Type4 sides dots sealing or Other type (Customizable)
Material DischargePiston pump metering
Production Speed20-35 bags/min
Machine Dimension850 * 1250 * 1500mm
Weight260KG
Power1.5KW
Material ContactStainless steel 304
Core FeaturesFully automatic film bag making, metering, filling, sealing, steel press code, cumulative output.
Packing MaterialComposite bag (OPP+PE / PET+PE / PET+AL+PE / NYLON+PE / PAPER+PE...)
Detail 1
Detail 2
Detail 3
High-Quality Components
PLC & Touch Screen: YISI
Temperature Control: YUYAO
Relay: YUYAO
Power Switch: Schneider
Proximity Switch: RUIKE
Step Motor: NACHUAN
Photoelectric Sensor: JULONG
Air Components: Airtac
Component View
Lab Series Features
Lab Series 1
Lab Series 2
Lab Series 3
Pneumatic control for metering and bag-making, ensuring simple operation and fewer wear parts.
Easy key control and man-machine interface for stable and convenient configuration.
High-grade materials: SUS201 box with 304 stainless steel for material contact parts.
Photoelectric accurate positioning for pattern integrity with abnormal alarm and auto-stop.
Intelligent temperature controller for precise transverse and longitudinal sealing.
Automatic feeding via diaphragm pump to reduce air contact/oxidation and labor.
Final View 1
Final View 2
Final View 3
Frequently Asked Questions
What types of products can this machine pack?
It is suitable for liquid and paste products such as milk, soybean milk, sauces, vinegar, yellow wine, shampoo, conditioner, creams, lotions, and hand sanitizers.
Is the bag size and filling volume adjustable?
Yes, the packing weight (1-50 ML), bag size (90*120MM), and film width (180MM) can all be customized according to your specific requirements.
What safety and hygiene features are included?
The machine features a stainless steel shell (SUS304 for contact parts), ultraviolet sterilization, and can be equipped with a glass cover for maximum sanitation.
How is the sealing temperature controlled?
The machine utilizes an intelligent temperature controller to automatically manage both transverse and longitudinal heat-sealing for aesthetic and fast results.
What is the production capacity of this sachet machine?
The production speed ranges from 20 to 35 bags per minute, depending on the material and bag specifications.
What kind of maintenance does it require?
Thanks to its pneumatic control system, the machine has fewer wearing parts, which simplifies operation and reduces the frequency of part replacements.
