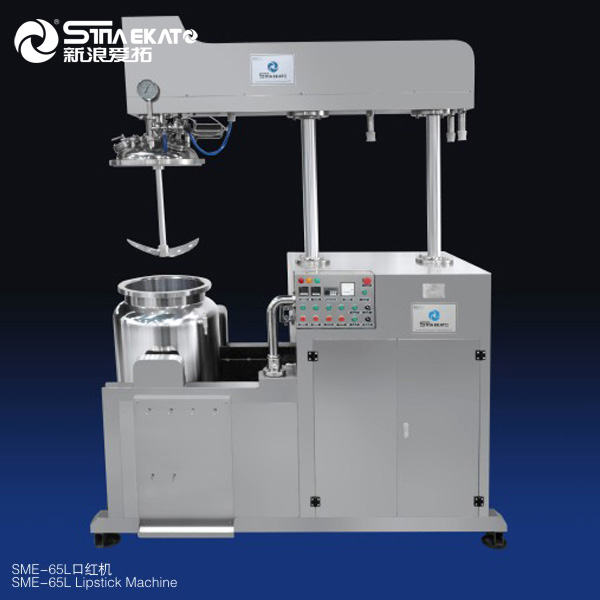

CE Certification Color Cosmetic Equipment Lipstick Machine Factory, Factories

After heating & mixing the materials in the water boiler and oil boiler, inhalated it into the emulsification boiler by the vacuum pump, make it mix and downflow to the homogenizer by birdirection cutting, compression and folding of the scraping mixing box and center impeller. The high tangential speed caused by high-speed rotating rotor and the strong momentum caused by high-frequency mechanical effect make material in the narrow gap between stator and rotor get a strong mechanical and hydraulic shear , centrifugal extrusion, liquid layer friction, impacted tear ,turbulence ect , so the pelletizing, emulsification, mixing, equalization, spread of the material will be finished in a short time. In the corresponding role of mature technology ,immiscible solid phase, liquid and gas are instantaneously uniformly emulsified ,finally get steady high-quality products.

Product Description

🏭 Professional Manufacturing Expertise

Under the support of a German design center and national light industry and daily chemicals research institute, and regarding senior engineers and experts as the technological core, we are a professional manufacturer of various types of cosmetic machinery and equipment. Our brand has become a leader in the daily chemical machinery industry. The products are applied in such industries as cosmetics, medicine, food, chemical industry, electronics, etc., serving many nationally and internationally famous enterprises.

With many years of experience in domestic and international installation, we have successively undertaken the integral installation of hundreds of large-sized projects. Our company provides internationally top-ranking professional project installation experience and management experience. Our after-sales service personnel have practical experience in equipment use and maintenance and receive systemic trainings. We are sincerely providing customers from home and abroad with machinery & equipment, cosmetic raw materials, packing materials, technical consultation and other services.

📊 Technical Specifications
Emulsifying Pot Design Volume (L) 30 / 50 100 / 150 / 200
Capacity (L) 25 / 40 80 / 120 / 160
Scraper Stirring Power (kw) 0.75 / 1.1 1.1 / 1.1 / 2.2
Scraper Stirring Speed (rpm) 0-86 0-86
Homogenizer Power (kw) 1.1 / 1.5 3
Electrical Heating Power (kw) 2 6 / 6 / 8
Homogenizer Speed (rpm) 2800 2800
Water Pot Design Volume (L) 25 / 38 60 / 100 / 120
Capacity (L) 20 / 30 45 / 80 / 95
Stirring Power (kw) 0.55 0.55 / 0.55 / 0.75
Stirring Speed (rpm) 1400 1400 / 1400 / 960
Electrical Heating Power (kw) 2 4 / 6 / 8
Oil Pot Design Volume (L) 20 / 25 45 / 75 / 100
Capacity (L) 16 / 20 35 / 60 / 80
Stirring Power (kw) 0.55 0.55 / 0.55 / 0.75
Stirring Speed (rpm) 1400 1400 / 1400 / 960
Electrical Heating Power (kw) 2 4 / 6 / 8
🛠️ Our Service Commitment
Fast Delivery within 30 days
Customized plans according to requirements
Support video factory inspections
Equipment warranty for two years
Equipment operation videos provided
Video inspection of finished products
⚙️ Production Process & Key Features
1. Water, oil and others are heated and mixed in Liquid and Oil Pots.
2. Materials are sucked into the emulsifying pot by a vacuum system.
3. Stirred by both center blade and side scraper, then processed in the cut-off mixing unit.
4. Materials are crushed into small pellets of 200um~2um.
5. Finished products are pumped out via the discharge system.
6. Cover can be lifted by a hydraulic/electrical system for easy cleaning.
7. Vacuum effect eliminates bubbles generated during the mixing process.
8. High-quality SUS316L material used for contact parts, mirror polished to GMP standards.
📦 Packaging & Product Types
Machine Type Emulsifier
Product Type Cosmetic (Lipstick, Cream, etc.)
Vacuum Optional System Available
Lifting Electrical or Hydraulic
Keywords Lipstick Vacuum emulsifying mixer, Reverse osmosis water purifier, Aseptic storage tank
Frequently Asked Questions
What industries use the vacuum emulsifying mixer?
Our machinery is widely used in the cosmetics, medicine, food, chemical, and electronics industries for producing high-quality emulsions and mixtures.
What materials are the machines made of?
Parts in contact with materials are made of high-quality SUS316L stainless steel, while other parts use SUS304, ensuring corrosion resistance and GMP compliance.
How are the finished products protected during shipping?
We use standard export plywood cases or steel cases suitable for container transportation to ensure the safety of the equipment.
What is the delivery time for a customized order?
Standard delivery is approximately 30 days, while complex or large-scale projects may take up to 60 days.
Does the equipment come with a warranty?
Yes, we provide a two-year equipment warranty along with operation videos and technical consultation services.
Can the machine handle bubbles in the mixture?
Yes, the emulsification pot features a vacuum system that effectively bleeds away bubbles generated during the mixing process.
