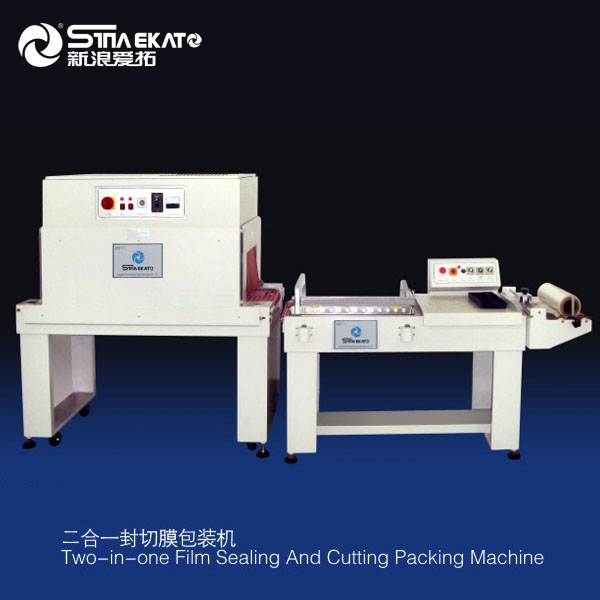

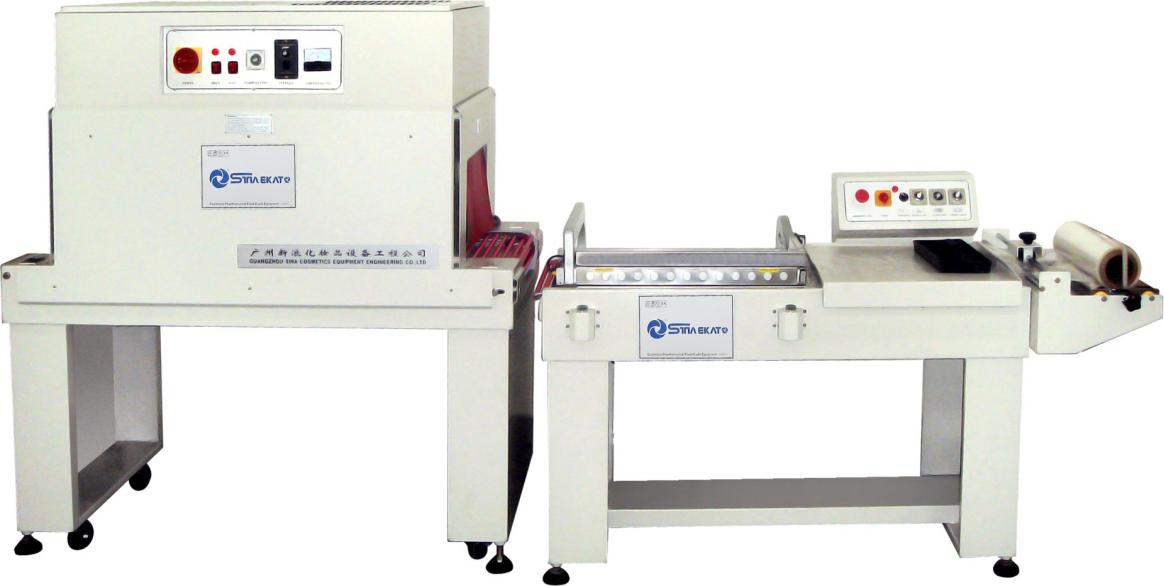

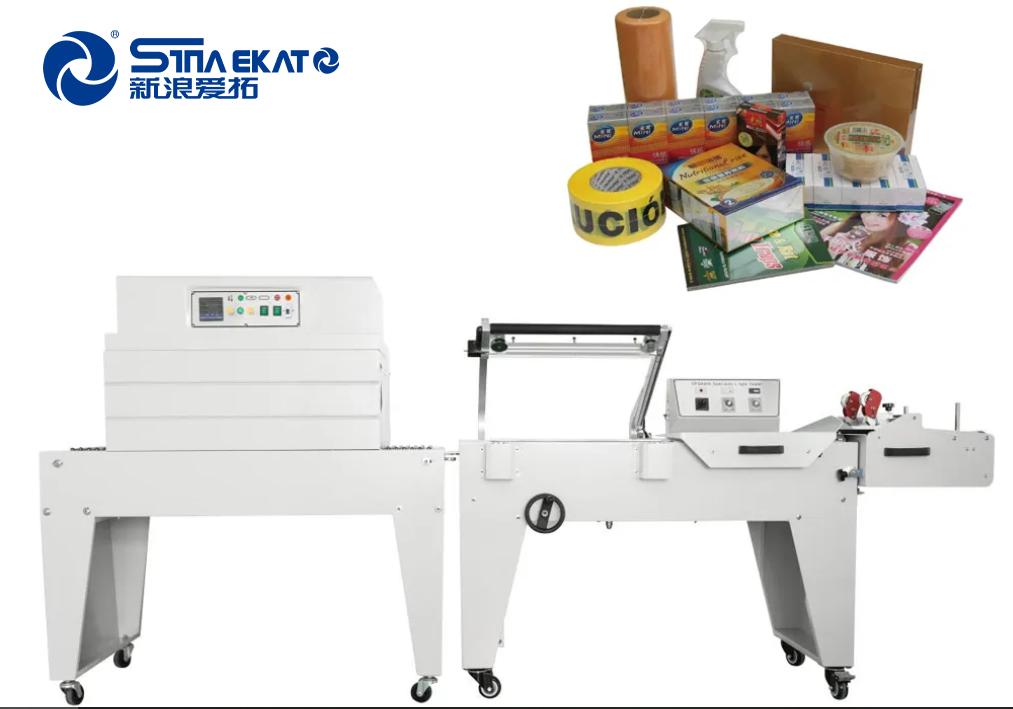

The cutting and sealing machine is generally used as a supporting equipment for the shrink packaging machine, and it can also be used alone; Teflon coated non-stick layer sealing cloth, sealing and cutting non-sticky film, and the sealing is neat and not cracked. After the product is sealed and cut, it enters the shrinking machine to complete the packaging.
Advanced internal circulation system design, high shrinkage effect, low energy consumption.
Stainless steel heating tube with long service time.
Movable drum transmission (can be changed to network) with adjustable speed.
Suitable for PVC/PP/POF film thermal shrinkage.
Compact construction and high efficiency.
The use of steel heating tube prolongs the system lifetime.
Strong air-flow ensures excellent heat distribution for an even shrinking process.
Intelligent temperature controller makes operation simple and intuitive.
The speed of the conveyor belt is fully adjustable.
Technical Specifications
Item
Sealing and cutting machine Specification
Item No.
450L
Power supply
220V 50/60HZ
Motor power
1KW
Transfer speed
0-15 PCS/min
Maximum sealing and cutting size
450*350*200mm
Total Weight
40-50KG
Dimension
1080x720x910mm
Applicable shrink film
POF/PVC/PP
Remarks: None
Key Operations & Components
01. Control Panel
The panel is concise and clear, very simple and convenient for workers to operate.
02. Roller Film Frame
The film frame of the roller is thicker, the load-bearing capacity is strong, the length can be adjusted, and the film change is simple.
03. Pin Wheel Positioner
The pin wheel can move left and right, so that you can choose the punch position, which is very practical.
04. Non-Stick Sealing Knife
The sealing knife adopts Teflon-coated anti-sticking and high-temperature aluminum alloy knife, which has a firm sealing, no cracking, no coking, no smoking, and no pollution to the environment.
05. Pull-Down Mechanism
Pull the pull-down rod, the 2 solenoid coils are attracted and fixed for heat sealing and cutting, which is very firm.
06. Height Adjusting Hand Wheel
Turn the hand wheel according to the height of the product to adjust the height of the table.
Frequently Asked Questions (FAQ)
What types of shrink films are compatible with the 450L sealing and cutting machine?
The machine is fully compatible with POF, PVC, and PP thermal shrinkable films, which are suitable for various packaging standards.
What are the benefits of the Teflon-coated sealing knife?
The Teflon-coated aluminum alloy knife ensures a firm sealing structure. It prevents the film from sticking, cracking, coking, and smoking, keeping the operation clean and eco-friendly.
What is the maximum sealing and cutting product size supported?
The maximum product dimension for sealing and cutting with the 450L model is 450 * 350 * 200 mm.
Can the transmission drum and conveyor speed be customized or adjusted?
Yes. The movable drum transmission speed is fully adjustable, and the drum layout can also be modified to a network belt configuration if required.
How does the pull-down heat sealing mechanism work?
When the operator pulls down the rod, two built-in solenoid coils are immediately attracted and held in place to secure the film, producing a firm and uniform heat seal.
Is this cutting and sealing machine designed for independent usage?
The machine is commonly integrated as a supporting component for shrink packaging systems, but it can also be operated as a standalone unit.
