1. The PME-4000L Mixer adopts fixed pot body, pot cover and pot body with flange connection can not be lifted.
🚀
1.2 The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolve many indissoluble materials such as AES, AESA, LSA, etc. during the liquid detergent production process so as to save energy consumption and shorten production period.
🛡️
2. The Mixer pot is made of three-layer stainless steel welding, the inner layer in direct contact with the material is made of imported SUS316L stainless steel, the middle jacket layer and the external thermal insulation layer are made of 304 stainless steel, and the tank body and pipeline are mirror-polished or matte, which fully meets the GMP requirements.
🔄
3. The stirring system adopts double-direction wall scraping mixing and frequency conversion speed adjustment, so as to satisfy product of different technological requirements.
🌀
4. The machine adopts the bottom external circulation homogenizing system, the homogenizing motor adopts Germany Siemens, and adjusts the homogenizing machine speed through the PLC control Siemens inverter in the electric cabinet, and the homogenizing speed is 0-2880r/min.
💻
5. The machine is controlled by an independent PLC electronic control cabinet, the cabinet is made of imported stainless steel materials, the electrical components are made of Germany Schneider Electric, the inverter and PLC are made of Germany Siemens, the instrument is Omron, and the operation equipment can be monitored through the Siemens PLC touch screen equipment. And through the Siemens touch screen of the cabinet to control the stirring speed, homogenization speed, temperature control and other.
✔️ 1. With many years of experience in domestic and international installation, we have successively undertaken the integral installation of hundreds of large-sized projects.
✔️ 2. Our company provides internationally top-ranking professional project installation experience and management experience.
✔️ 3. Our after-sales service personnel have practical experience in equipment use and maintenance and receive systemic trainings.
✔️ 4. We are sincerely providing customers from home and abroad with machinery & equipment, cosmetic raw materials, packing materials, technical consultation and other service.
| Parameter Item |
Specifications (PME-4000L) |
| Model | PME-4000L |
| Working Volume | 4000L |
| Design Volume | | 5000L |
| Homogenizer Motor | Power(KW) | 30KW |
| Rotate speed(r/min) | 0-3000 r/min |
| Stir Motor (external Mixing) | Power(KW) | 7.5KW |
| Rotate speed(r/min) | 0-60r/min |
| Stir Motor (internal Mixing) | Power(KW) | 15KW |
| Rotate speed(r/min) | 0-30r/min |
| Overall Dimension(L*W*H) unit(mm) | 2300*2300* |
| Type of Heating | Steam heating |
| Note: in case of inconformity of the data in the table due to technical improvement or customization, the real object shall prevail. |
Under the support of German design center and national light industry and daily chemicals research institute, and regarding senior engineers and experts as the technological core, we are a professional manufacturer of various types of cosmetic machinery and equipment and have become a brand enterprise in the daily chemical machinery industry. The products are applied in such industries as: cosmetics, medicine, food, chemical industry, electronics, etc., serving many nationally and internationally famous enterprises.
Focus on quality other than quantity certifications
80% of the main parts of our products are provided by world’s famous suppliers. During long-term cooperation and exchange with them, we have accumulated much valuable experience, so that we can provide customers with high quality products and more effective guarantee.
- 📦 The delivery date is only 30~60 days
- 🛠️ Customized plan according to requirements
- 📹 Support video inspection factory
- 📢 Equipment warranty for two year
- 🎬 Provide equipment operation video
- 🔍 Support video inspect the finished product

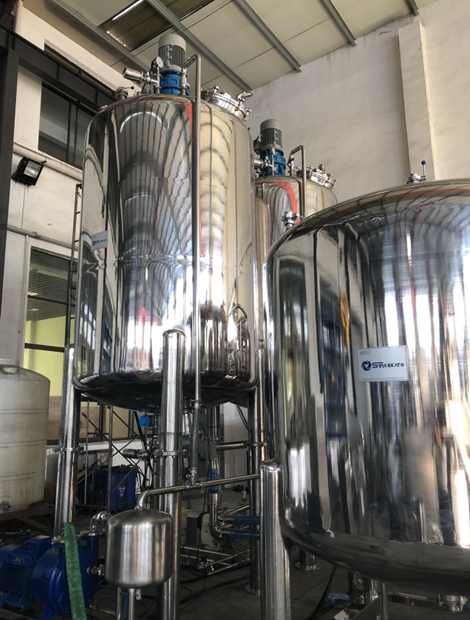

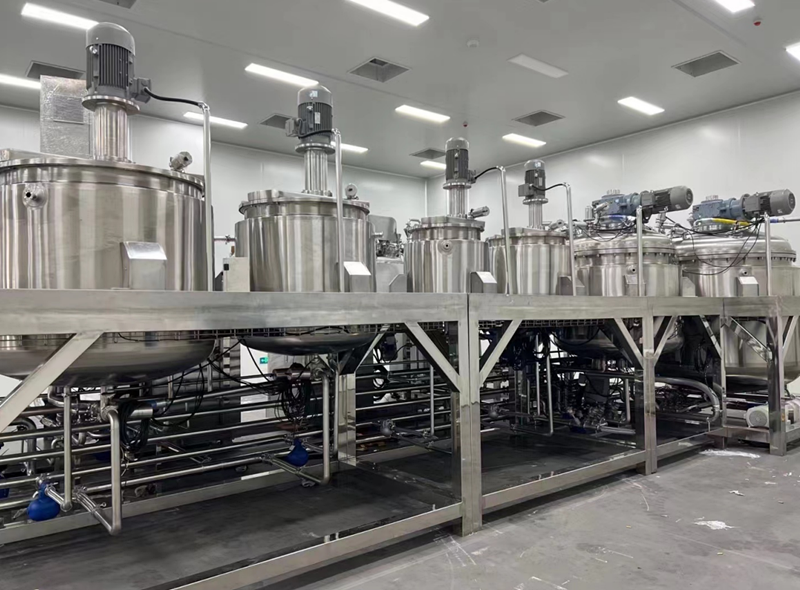

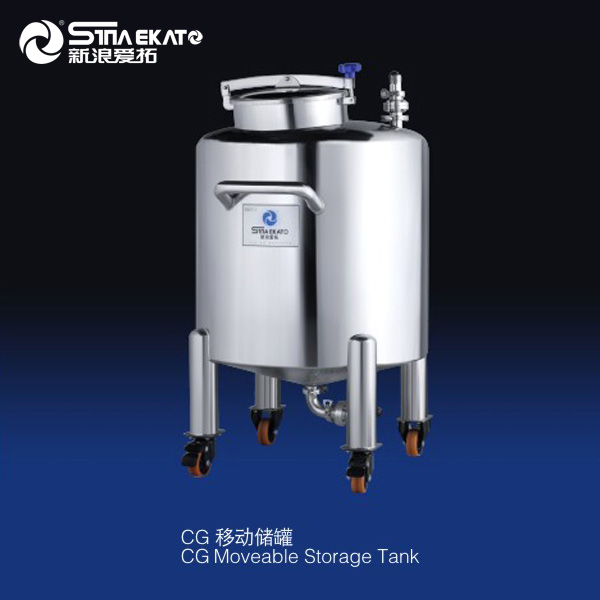

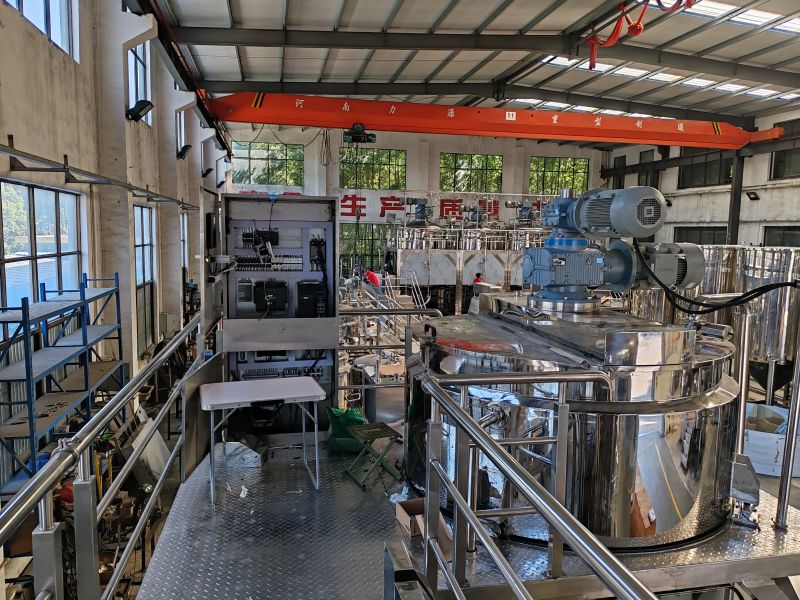

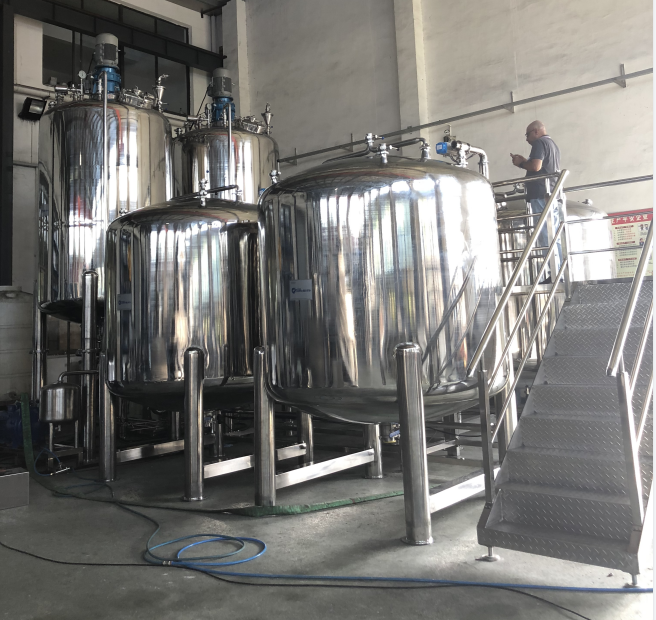

The PME-4000L Mixer system includes a 4000L liquid washing homogenizing mixer, an independent PLC controlled electric cabinet, a piping system, a CG-8000L stainless steel storage tank, an electric lifting platform, a stainless steel platform with safety railings and steps.
Mixer is suitable for the production of various types of detergents cosmetics spices and other fine chemicals necessary equipment
PME-4000L Mixer Element

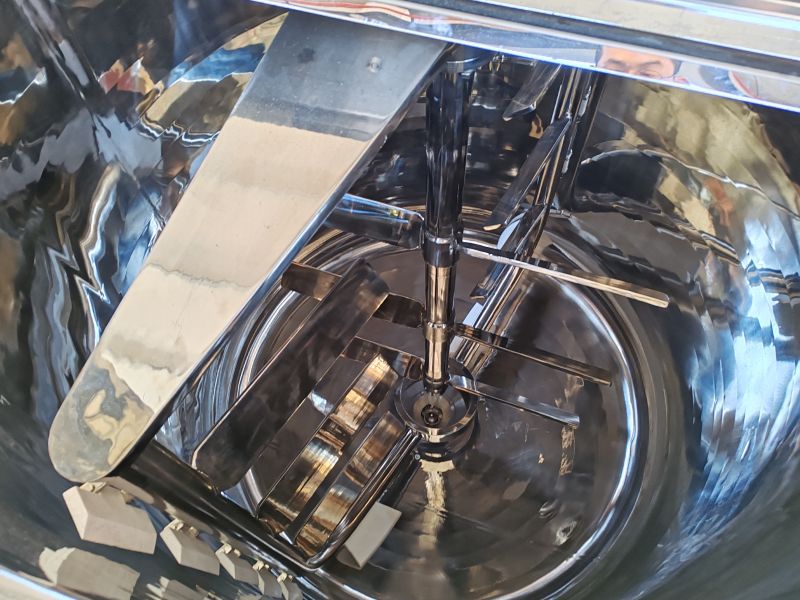

Top Mixing System

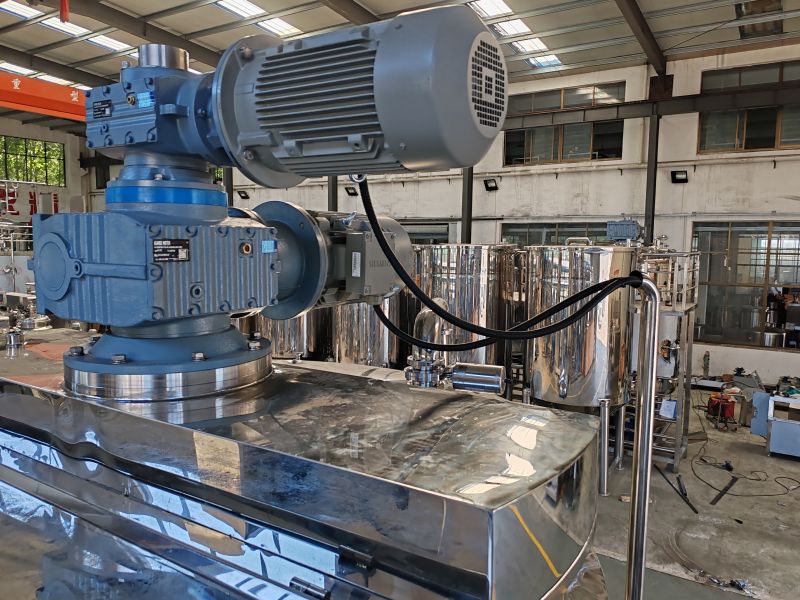

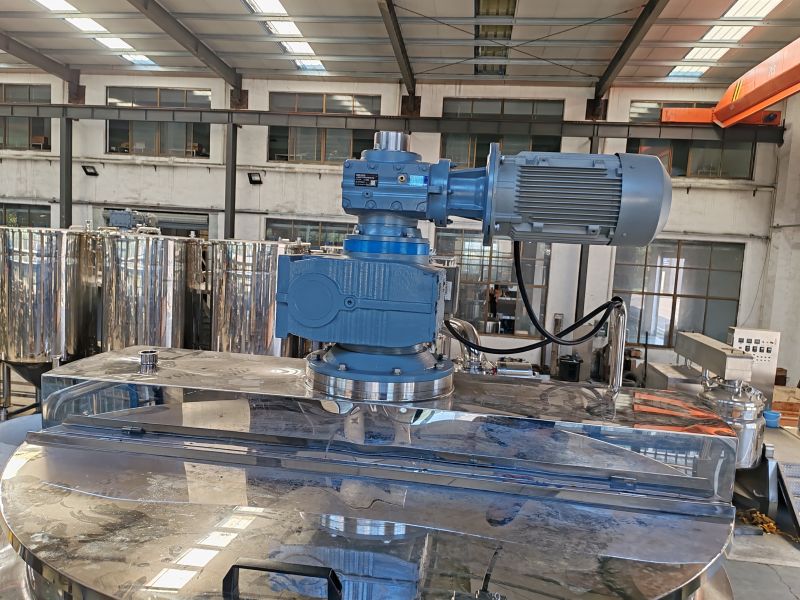

The Mixing system of the main pot adopts bi-directional wall-scraping stirring, and the stirring motor uses a German Siemens motor to provide efficient mixing and ensure thorough blending of ingredients in the main pot.
The Mixer pot is made of three-layer stainless steel welding, the inner layer in direct contact with the material is made of imported SUS316L stainless steel, the middle jacket layer and the external thermal insulation layer are made of 304 stainless steel, and the tank body and pipeline are mirror-polished or matte, which fully meets the GMP requirements.

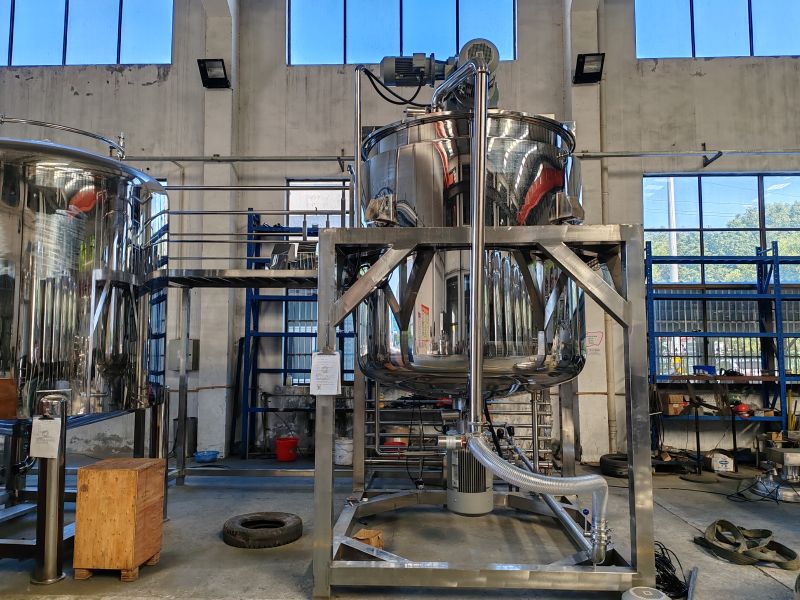

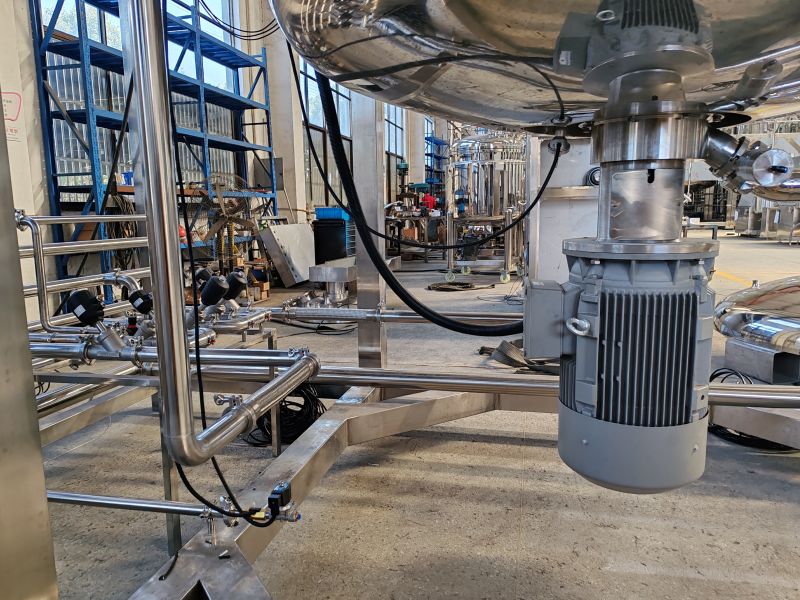

Bottom Homogenizer System
- Efficient Blending: Designed to facilitate efficient blending for consistent quality.
- Homogenization: Capable of breaking down and dispersing particles for a stable product.
- High Shear Mixing: Provides high shear forces to effectively mix and emulsify substances.
- Versatility: Suitable for liquids, suspensions, and emulsions.
- Controllable Parameters: Adjustable mixing speed, circulation flow, and shear force.

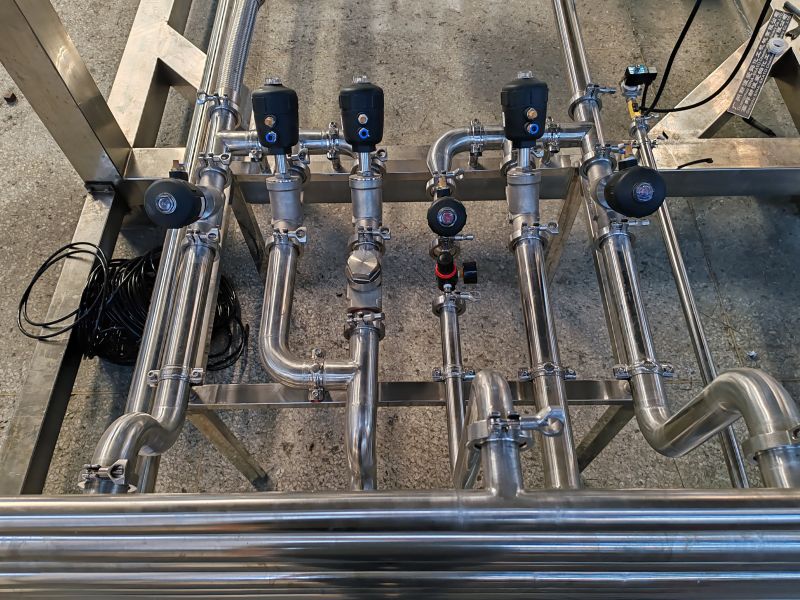

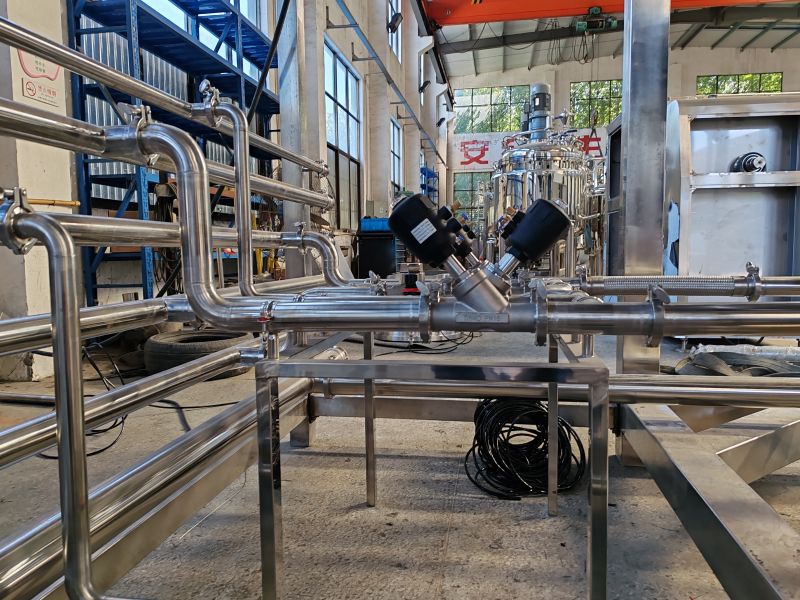

Pipe System
Sewage Pipe: Transport wastewater to disposal systems.
Steam Inlet/Outlet: Delivering and releasing steam for heating and sterilization.
Cooling Water Inlet/Outlet: Regulate temperature during mixing.
Compressed Air Pipe: Supplies air for agitation or aeration.

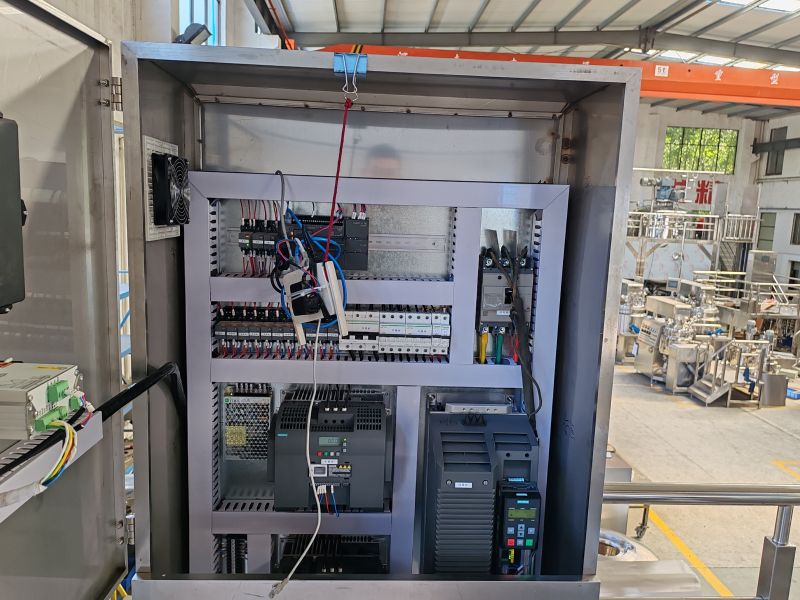

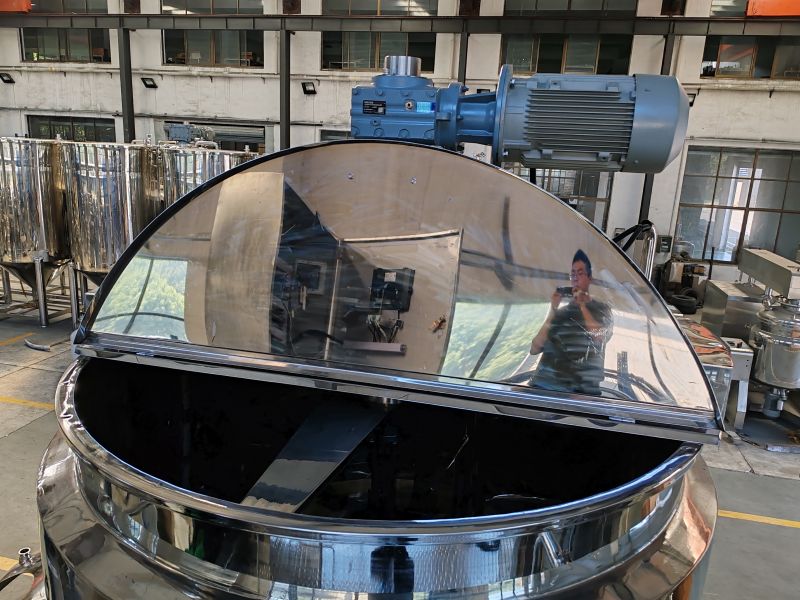

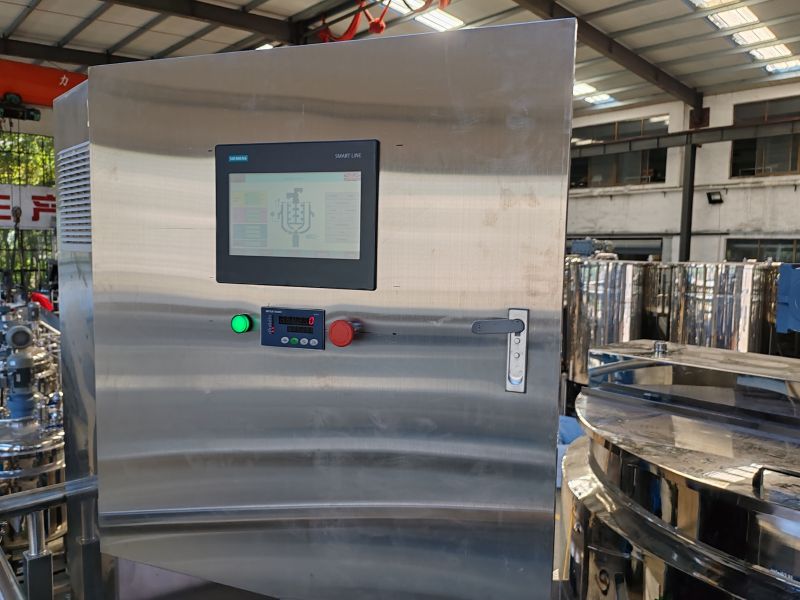

Cover Element & Independent Control Cabinet
The single-side open lid facilitates material addition, maintenance, and cleaning. The independent control cabinet features a Siemens PLC touch screen and Schneider electrical components, providing precise control over mixing and homogenization speeds.

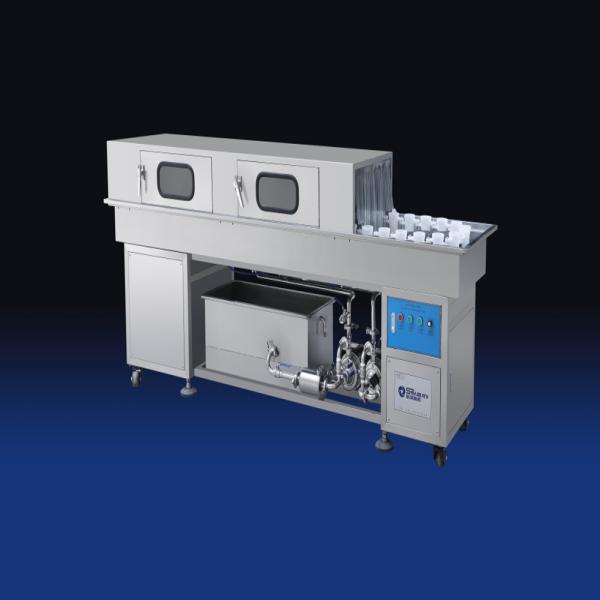

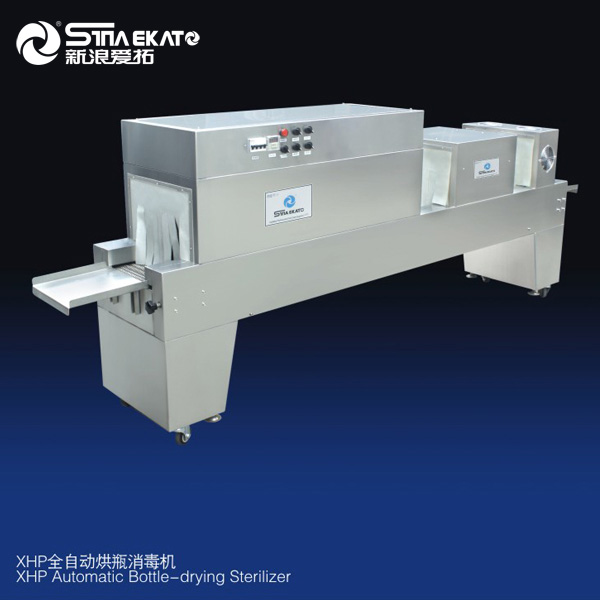

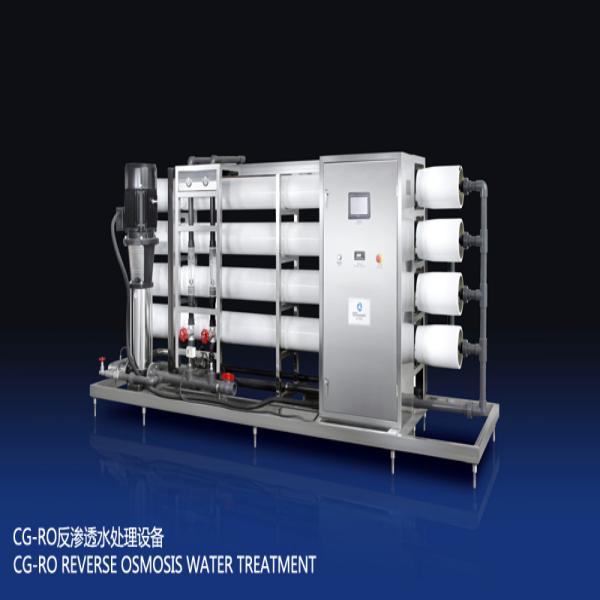

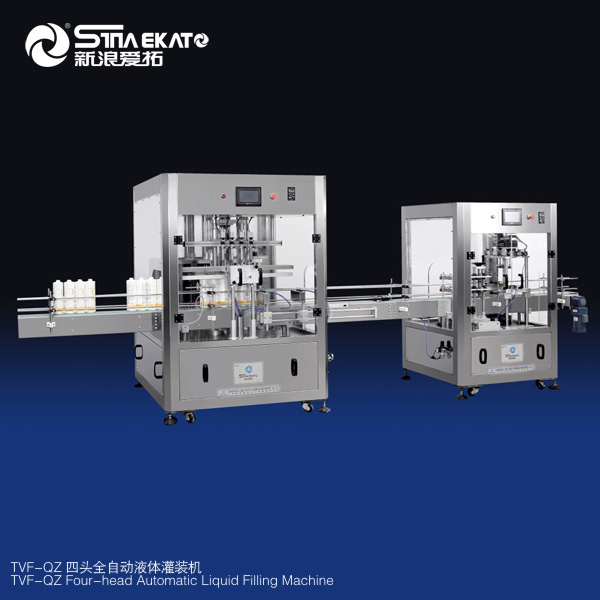

RO Treatment Water System | Auto Washing Bottle machine | Bottle drying machine | Sterile storage tank | Auto Liquid filling machines | Auto labeling machine
Frequently Asked Questions (FAQ)
What materials are used in the construction of the PME-4000L Mixer?
The mixer pot is built with three-layer stainless steel. The inner layer is SUS316L, while the middle jacket and external insulation layers are 304 stainless steel, ensuring compliance with GMP requirements.
What is the homogenizing speed of this machine?
The machine features a bottom external circulation homogenizing system with a speed range of 0-2880 r/min, controlled via a Siemens inverter.
Which industries can use this liquid washing homogenizing mixer?
It is highly suitable for the production of various detergents, cosmetics, spices, medicine, food, electronics, and other fine chemical products.
What kind of control system does the equipment use?
The machine utilizes an independent Siemens PLC touch screen control system, allowing for precise adjustment of stirring speed, homogenization speed, and temperature.
Does the machine support heating and cooling?
Yes, the system includes a dedicated piping system for steam heating and a cooling water inlet for temperature regulation during the mixing process.
What is the typical delivery time and warranty period?
The standard delivery date is between 30 to 60 days. The equipment comes with a two-year warranty and supports video inspection for both the factory and the finished product.
