This high-performance equipment is widely utilized for manufacturing paste, ointment-like products such as toothpaste, cosmetics, food, and in the chemical industry. Available capacities range from 50L mini sizes to large-scale 5000L units. Below are the detailed specifications based on the 3500L configuration:

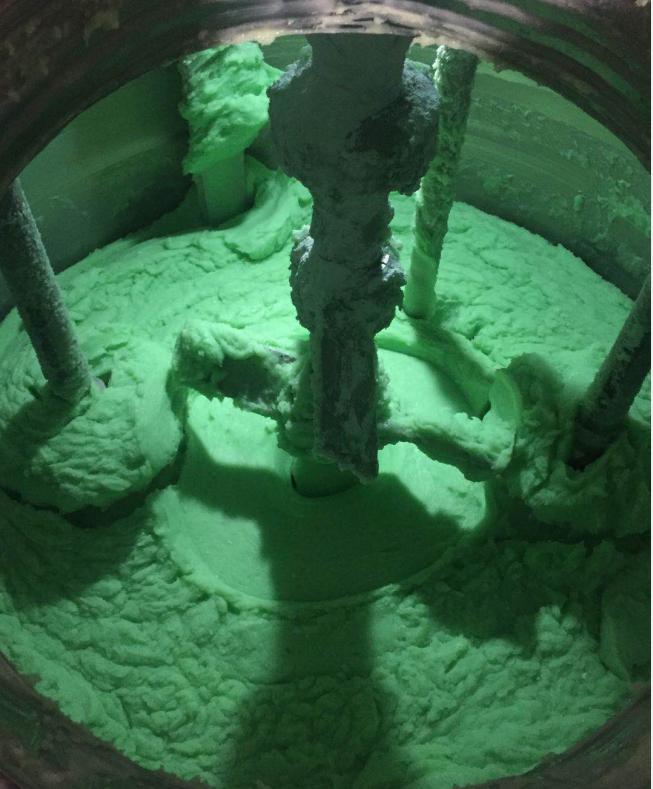

Feeding and Production Process

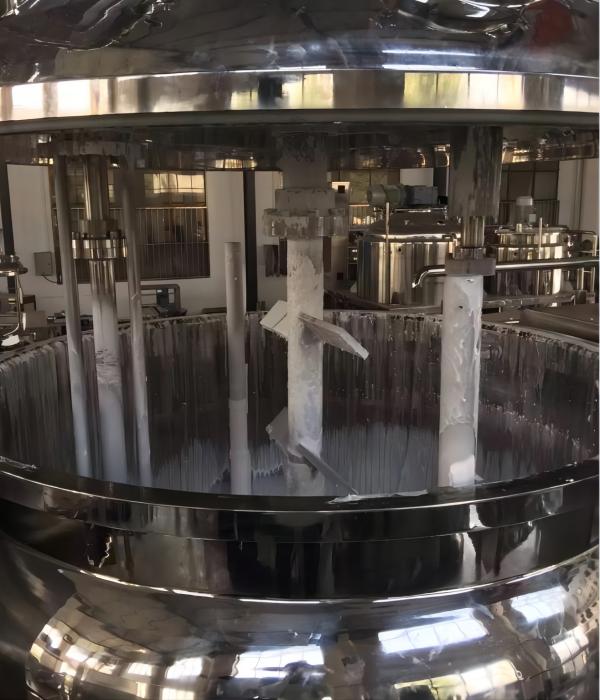

SME-BE3500L Toothpaste Making Machine - Main Mixer
- Three layers stainless steel construction; all contact parts adopt SUS 316L, others use SUS 304.
- Advanced Steam heating system.
- Single direction mixing with scraper + dual-side dispersing mixing.
- Precision control via Touch Screen & PLC (Electrical buttons optional).
- Integrated Homogenizer/Emulsifier system (Optional).
1800L Oil-phase Premixer
- Three layers stainless steel (SUS 316L contact).
- Steam heating enabled.
- Top dispersing mixing unit.
- Touch screen & PLC control.
2000L Water-phase Premixer
- Three layers stainless steel (SUS 316L contact).
- Steam heating enabled.
- Top paddle mixing with guide plate & bottom homogenizer.
- Touch screen & PLC control.

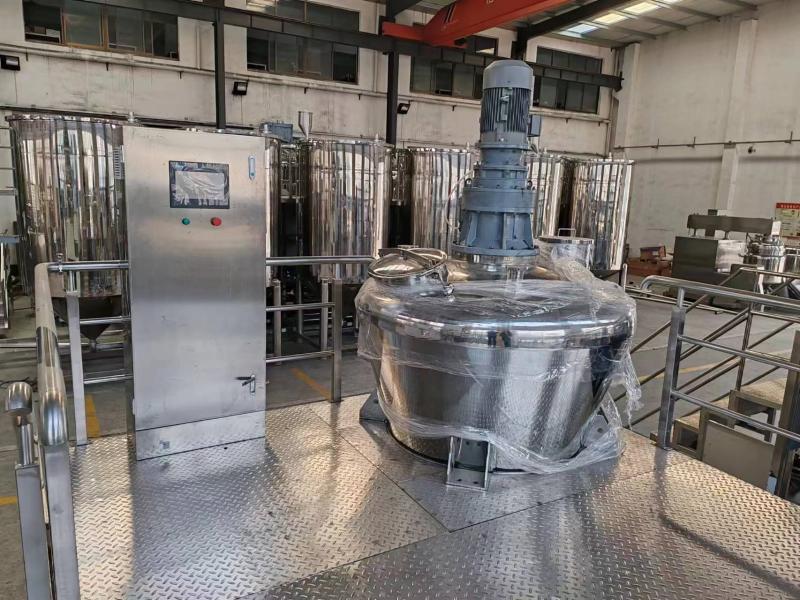

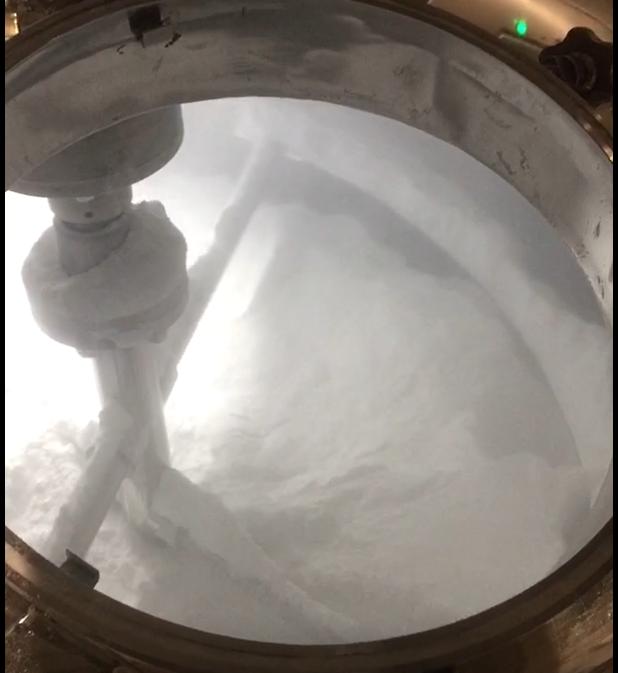

1500L Powder Mixer (Independent Platform)
- Single layer design (without heating/cooling).
- Top mixing with sealed cover.
- Hydraulic lifting system for easy cleaning and discharge.
- Vacuum system for efficient powder suction.
- GMP standard compliant with SUS 316L contact material.
- Versatile for both cream and liquid toothpaste production.
Inspection & Quality Control

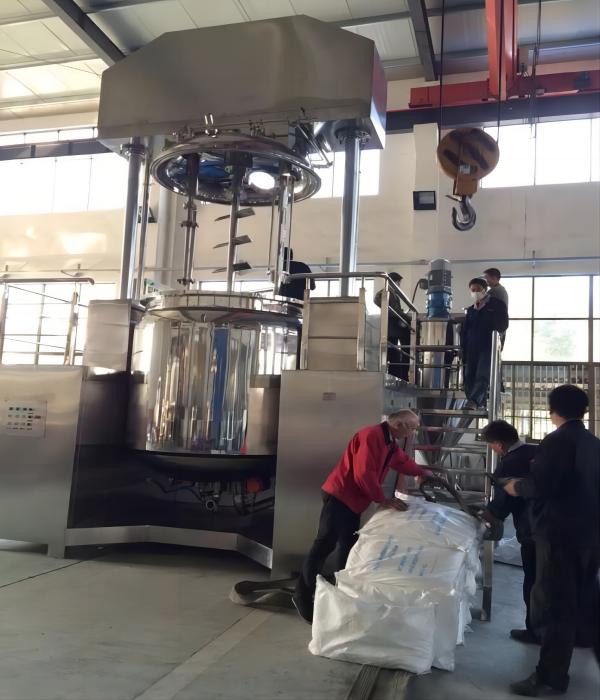

2000L/Batch Equipment Inspection

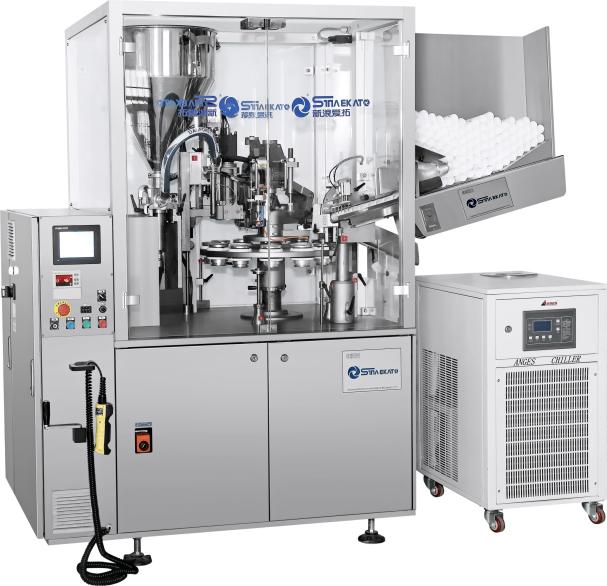

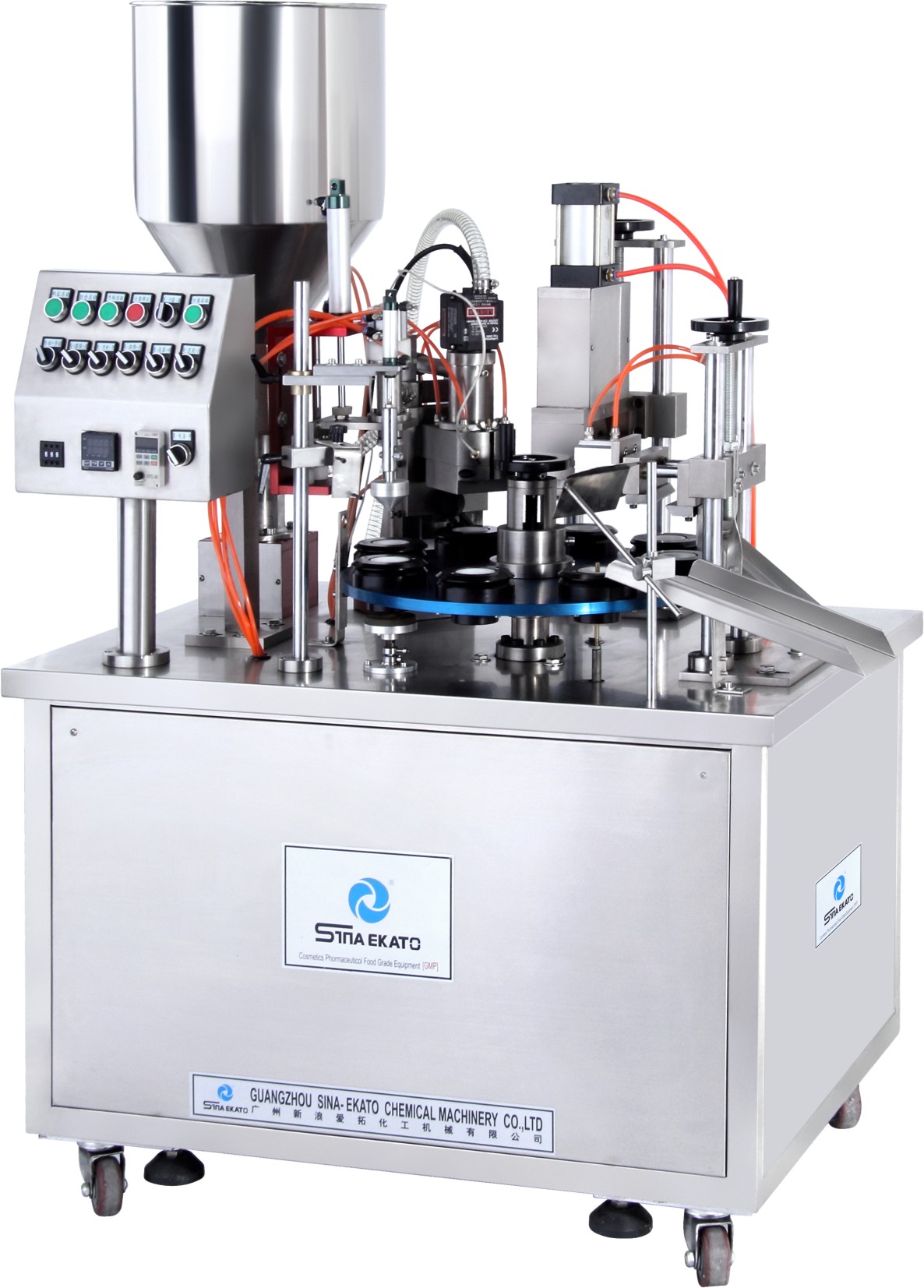

Tube Filling & Sealing Machine
Available in Semi-auto & Full-auto models
Detailed Technical Components

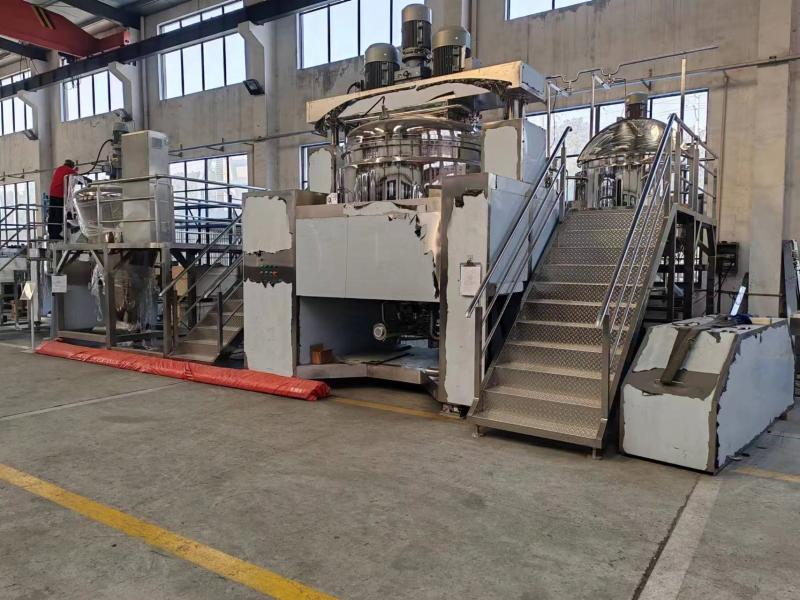

3000L/Batch System Final Inspection
SME-BE3500L Main Pot Details
Water-phase & Oil-phase Premixers
3500L Main Pot Cover & Elements

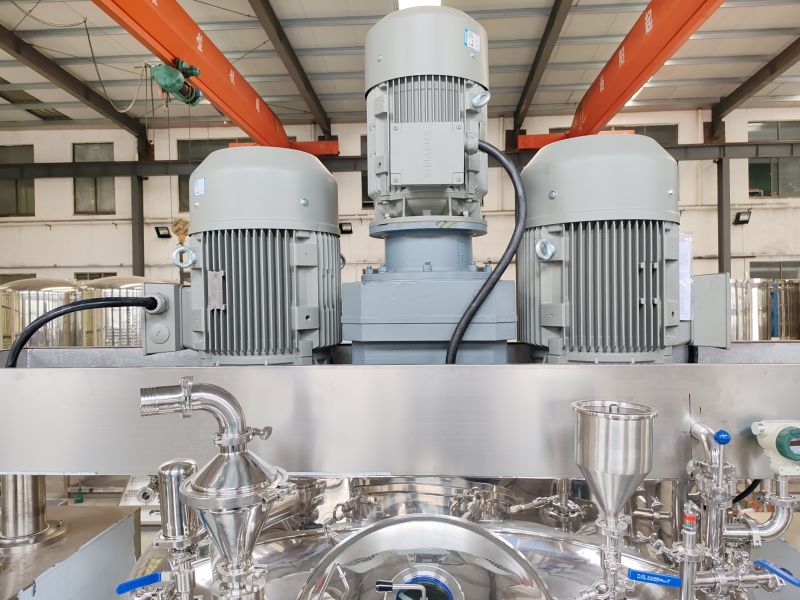

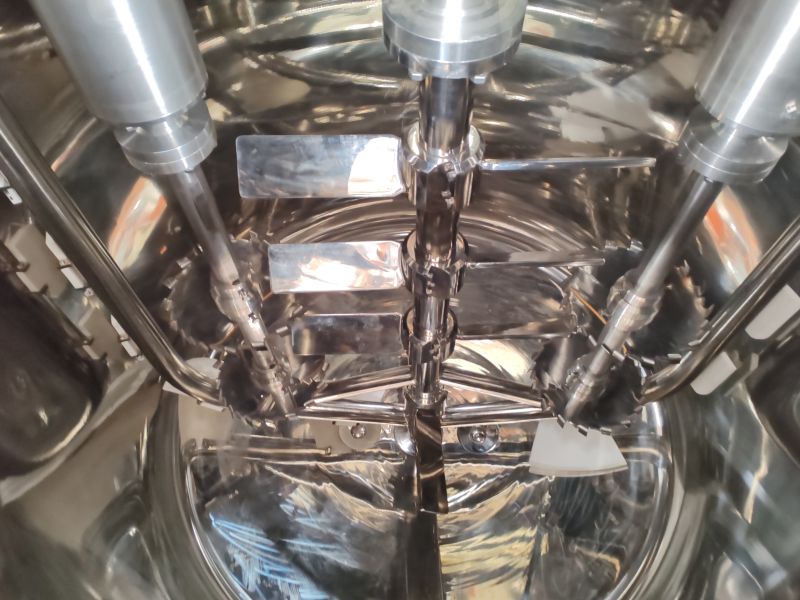

Top Mixing & Dispersing System
Frequently Asked Questions (FAQ)
1. What industries can use the SME-BE series making machines?
Our machines are ideal for toothpaste, cosmetics (creams, lotions), food products, and various chemical industry applications requiring high-viscosity paste manufacturing.
2. What are the material specifications for the mixing tanks?
All contact parts are made of high-grade SUS 316L stainless steel, while external surfaces and non-contact parts are made of SUS 304, ensuring compliance with GMP standards.
3. What capacity options are available for these machines?
We provide a wide range of sizes, from 50L mini-scale units for R&D to large-scale 5000L units for mass production.
4. Does the machine support automatic control?
Yes, the machines are equipped with advanced PLC systems and user-friendly touch screens for precise process control. Manual electrical buttons are also available as an option.
5. Is a vacuum system included in the powder mixer?
Yes, the 1500L powder mixer features a specialized vacuum system for efficient powder suction, along with a hydraulic lifting system for easy cleaning.
6. What heating methods are supported?
The premixers and the main mixer are designed with triple-layer stainless steel jackets specifically for efficient steam heating.
