📊 Cooling Capacity Design Specifications
| No. |
Material volume (t) |
Unit disposing capacity (t/h) |
Initial temperature (°C) |
Final temperature (°C) |
Temp drop difference (°C) |
Calculated cold load (kw) |
Affluence factor (1.30) |
Designed cooling capacity (kw) |
| 1 | 1.00 | 1.00 | 80.00 | 30.00 | 50.00 | 58.15 | 1.30 | 1.30 |
| 2 | 2.00 | 2.00 | 80.00 | 30.00 | 50.00 | 116.30 | 1.30 | 1.30 |
| 3 | 3.00 | 3.00 | 80.00 | 30.00 | 50.00 | 174.45 | 1.30 | 1.30 |
| 4 | 4.00 | 4.00 | 80.00 | 30.00 | 50.00 | 232.60 | 1.30 | 1.30 |
| 5 | 5.00 | 5.00 | 80.00 | 30.00 | 50.00 | 290.75 | 1.30 | 1.30 |
💡 Key System Features
Rapid Cooling
The lowest water output temperature can reach 7°C to rapidly cool materials and guarantee material luster. It is especially effective for cooling detergent, ointment, and similar products.
Intelligence
Adopted an intelligent microcomputer touchscreen integrated control system. It realizes linked operation with various water pumps and monitors the unit operation in an all-round way.
High Efficiency

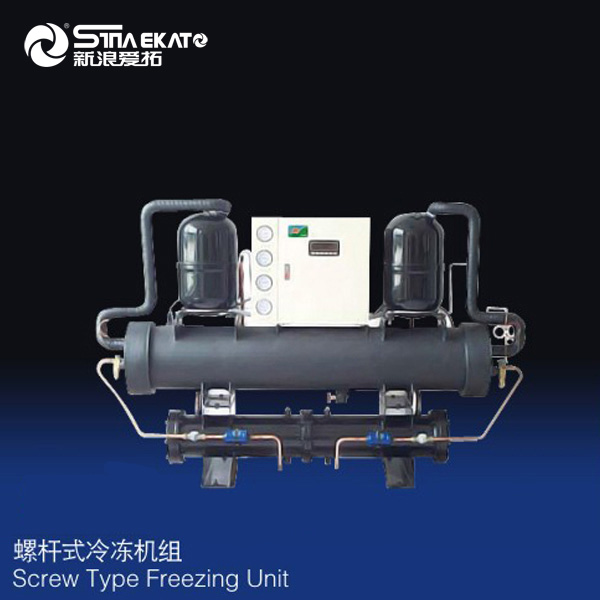

Equipped with advanced high-efficiency screw compressors and high-quality condensers/evaporators, all conforming to national inspection standards.
Safety & Reliability
Features comprehensive safety protection measures, stable performance, low noise, and a long service life with a beautiful integral design.
⚙️ Technical Advantages
World-Class Compressors: Semi-hermetic compressors for long-term reliable and efficient running.
Stageless Adjustment: Continuous adjustment of cooling capacity between 25%-100% power load for stable outputs. Optional brands: HANBELL, BITZER.
High-Precision Design: Shell and tube condenser with external threaded copper and evaporator with inner threaded copper for maximum heat exchange.
PLC Control: Latest generation PLC controller ensures precision control (±0.5°C) and 24-hour timing function.
Remote Management: Equipped with RS485 communication function for automatic remote management.
Durable Construction: High-temperature and high-pressure resistant components to prevent refrigerant leakage.
❓ Frequently Asked Questions
Q: What is the lowest water output temperature for this cooling unit?
A: The unit can reach a minimum water output temperature of 7°C, which is ideal for rapidly cooling materials like detergents and ointments while maintaining luster.
Q: What compressor brands are available for this system?
A: We use world-famous semi-hermetic compressors, with high-quality options including HANBELL and BITZER.
Q: How precise is the temperature control?
A: Thanks to the advanced PLC controller, the outlet chilled water temperature accuracy is maintained within ±0.5°C.
Q: Does the system support automated or remote operation?
A: Yes, it features a 24-hour timing function for scheduled operation and an RS485 communication interface for remote management.
Q: Can the cooling capacity be adjusted based on demand?
A: Yes, the compressor supports stageless continuous adjustment of cooling capacity between 25% and 100% of the power load.
Q: How does the system ensure efficient heat exchange?
A: The system utilizes a shell and tube condenser with high-precision external threaded copper and a shell and tube evaporator with inner threaded copper for a larger heat exchange area.
