This system occupies little space, is easy to operate, and has a wide application range. When used for disposing industrial water, the reverse osmosis device does not consume large amounts of acids and alkalis, and there is no secondary pollution. In addition, its operation cost is low.
Performance: Desalting rate >99%, machine desalting rate >97%. Effectively removes 98% of organic matters, colloids, and bacteria.
Electronic Industry: Integrated circuits, silicon wafers, display tubes.
Pharmaceutical Industry: Large infusion, injections, tablets, equipment cleaning.
Chemical Industry: Circulating water, product manufacturing.
Electric Industry: Thermal power boilers, low-pressure boiler systems.
Food & Beverage: Purified drinking water, beverages, beer, alcohol.
Desalination: Seawater and saline water for islands, ships, and drilling platforms.
Purified Drinking: Residential properties, communities, and enterprises.
Process Water: Automobile painting, coated glass, cosmetics, fine chemicals.
| Model | Capacity (T/H) | Power (KW) | Recovery (%) | 1-Stage Cond. (μs/cm) | 2-Stage Cond. (μs/cm) | EDI Cond. (μs/cm) |
|---|---|---|---|---|---|---|
| R0-500 | 0.5 | 0.75 | 55-75 | ≤10 | 2-3 | ≤0.5 |
| R0-1000 | 1.0 | 2.2 | 55-75 | |||
| R0-3000 | 3.0 | 5.5 | 55-75 | |||
| R0-5000 | 5.0 | 7.5 | 55-75 | |||
| R0-10000 | 10.0 | 11.0 | 55-75 | |||
| R0-20000 | 20.0 | 15.0 | 55-75 |

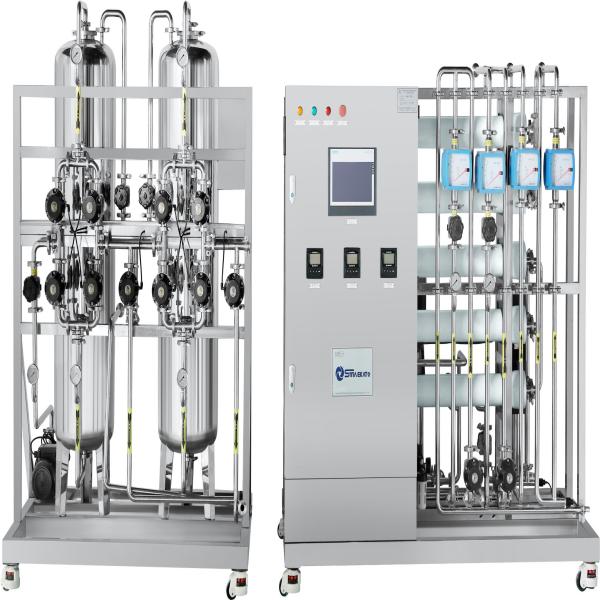

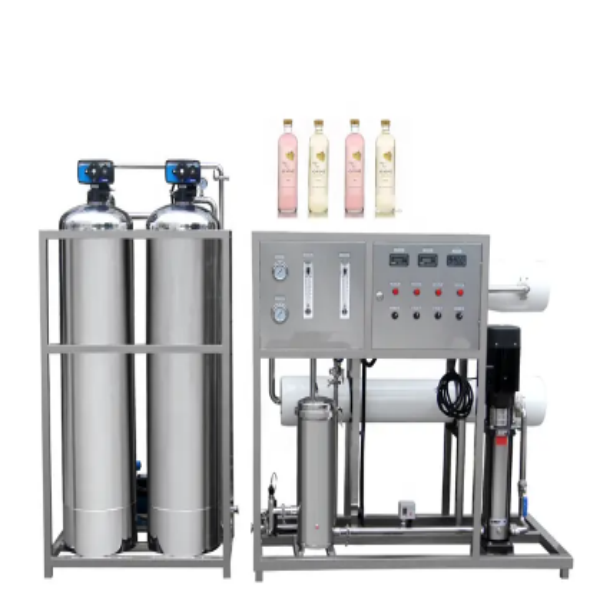

| Description | Pure water treatment purifying machine |
| Voltage | AC380V - 3 Phase |

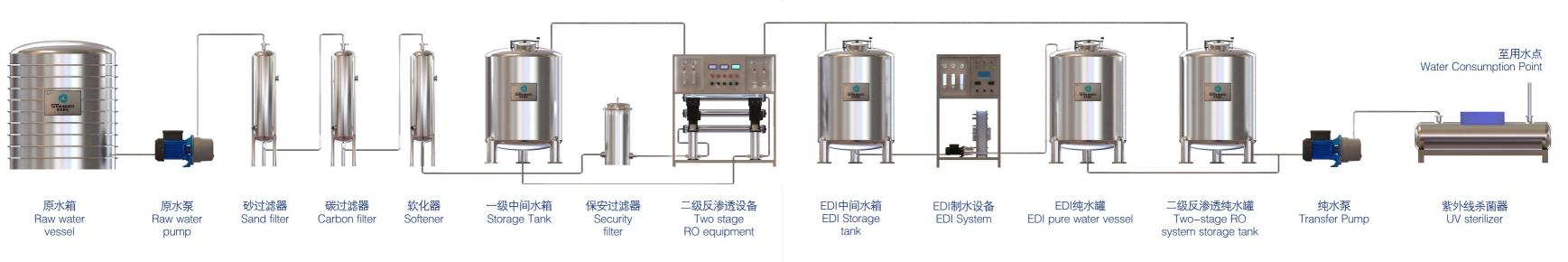

| Components | Sand + Carbon + Soften + Precision + RO Filter |
| Principle | Physical filtration + Reverse Osmosis |
| Control | Button or PLC + Touch Screen |
Pretreatment is essential to eliminate suspended matter, microorganisms, colloids, and organic matter. This creates the necessary conditions for the desalination procedure to meet reverse osmosis requirements. Main equipment includes: Multi-medium filter, Active carbon adsorption filtration, and Secondary filter.
