1
Discharge System
Finished products can be discharged by valve or match a screw pump.
2

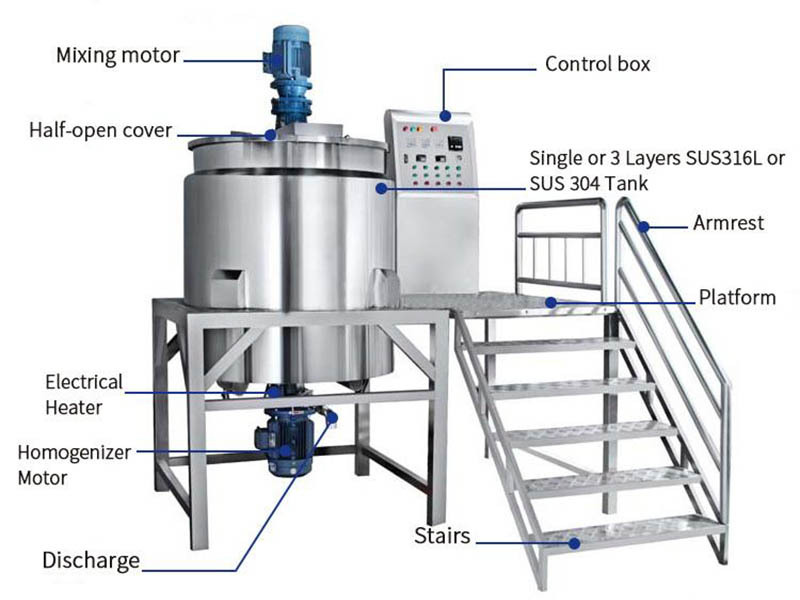

Mixing Systems
Double mixing systems: top wall scraper mixer and high shear bottom homogenizer.
3
Heating & Design
Heating systems: electric heating or steam heating optional, or without heating movable design: the mixing tank can be small batch products mixing.
4
Processing Efficiency
Industrial mixer/mixing equipment/mixing tank with agitator has high speed dispenser, mixing and disperse viscosity, solid and liquid, etc. Various kind of raw material will be dissolve which is such as AES, AESA LSA, during liquid production which can save energy consumption and shorten production period.
| Model |
Capacity |
Mixing power (kw) |
Mixing speed (r/min) |
Homogenizing power (kw) |
Homogenizing speed (r/min) |
Heating method |
| PME-200 |
200L |
0.75 |
0-65 |
2.2-4 |
3000 |
Steam Heating Or Electric Heating |
| PME-300 |
300L |
0.75 |
0-65 |
2.2-4 |
3000 |
| PME-500 |
500L |
2.2 |
0-65 |
5.5-7.5 |
3000 |
| PME-1000 |
1000L |
4 |
0-65 |
7.5-11 |
3000 |
| PME-2000 |
2000L |
5.5 |
0-53 |
11-15 |
3000 |
| PME-3000 |
3000L |
7.5 |
0-53 |
18 |
3000 |
| PME-5000 |
5000L |
11 |
0-42 |
22 |
3000 |
| PME-10000 |
10000L |
15 |
0-42 |
30 |
3000 |
The parameters for reference ONLY, all the machines can be customized accordingly.
Frequently Asked Questions
Q1: What are the dual mixing systems in this equipment?
The machine features a top wall scraper mixer for thorough movement and a high-shear bottom homogenizer for intensive mixing and particle reduction.
Q2: What heating options are available for the mixing tank?
You can choose between electric heating or steam heating. Alternatively, the tank can be designed without a heating system depending on your specific production needs.
Q3: How are the finished products discharged from the mixer?
Finished products can be conveniently discharged through a bottom valve or by utilizing a matched screw pump for more controlled material transfer.
Q4: Can this machine handle high-viscosity materials like AES or AESA?
Yes, the high-speed dispenser and agitator are specifically designed to disperse and dissolve various raw materials, including high-viscosity liquids, efficiently.
Q5: Is the capacity of the mixing tank customizable?
While our standard models range from 200L up to 10,000L, all parameters are for reference, and the machine specifications can be fully customized to meet your requirements.
Q6: What is the benefit of the movable design for the mixing tank?
The movable design is particularly useful for small batch production, allowing for greater flexibility and easier integration into different production lines.
