This advanced homogenizing emulsifying machine is designed for various industries such as cosmetics, medicine, and toiletries. It is capable of producing high-quality emulsions, creams, lotions, and gels with a smooth and uniform texture. The vacuum feature of the machine helps to remove air bubbles and ensure a longer shelf life for the products. Additionally, the homogenizing process helps to achieve a finer and more stable emulsion, resulting in better product quality.
The SinaEkato 500L vacuum homogenizing emulsifying machine is not only efficient in its operation but also easy to clean and maintain. The touch screen interface allows for intuitive control and monitoring of the entire process. With its reliable performance and precise engineering, this machine is a valuable addition to any production line.
As a product of SinaEkato, a renowned company in the field of homogenizing equipment, this machine is backed by years of expertise and innovation. The company is dedicated to providing high-quality and reliable solutions for various processing needs.
In conclusion, the SinaEkato 500L vacuum homogenizing emulsifying machine with oil mixing pot is the ideal choice for businesses looking to achieve consistent and high-quality product formulations. Its advanced features, durable construction, and ease of use make it a valuable investment for any production facility.
| Daily Cosmetic | |||
|---|---|---|---|
| hair conditioner | facial mask | moisturizing lotion | suncream |
| skin care | shea butter | body lotion | sunscreen cream |
| cream | hair cream | cosmetic paste | BB Cream |
| lotion | face wash liquid | mascara | foundation |
| hair color | face cream | eye serum | hair gel |
| hair dye | lip balm | serum | lip gloss |
| emulsion | lipstick | highly viscous product | shampoo |
| cosmetic toner | hand cream | shaving cream | moisturizing cream |
| Food & Pharmaceutical | |||
| cheese | milk butter | ointment | ketchup |
| mustard | peanut butter | mayonnaise | wasabi |
| toothpaste | margarine | Salad dressing | sauce |
Maintenance & Cleaning: When choosing a fixed emulsifier, some customers may ask: how do workers clean the machine after finishing a pot of material?
At the top of the pot, we feature a CIP shower system. Generally, capacities below 500L include a top sprinkler system, while capacities larger than 500L will have 2-3 sprinkler balls on the lip. The pot can be thoroughly cleaned using hot water and appropriate solvents.

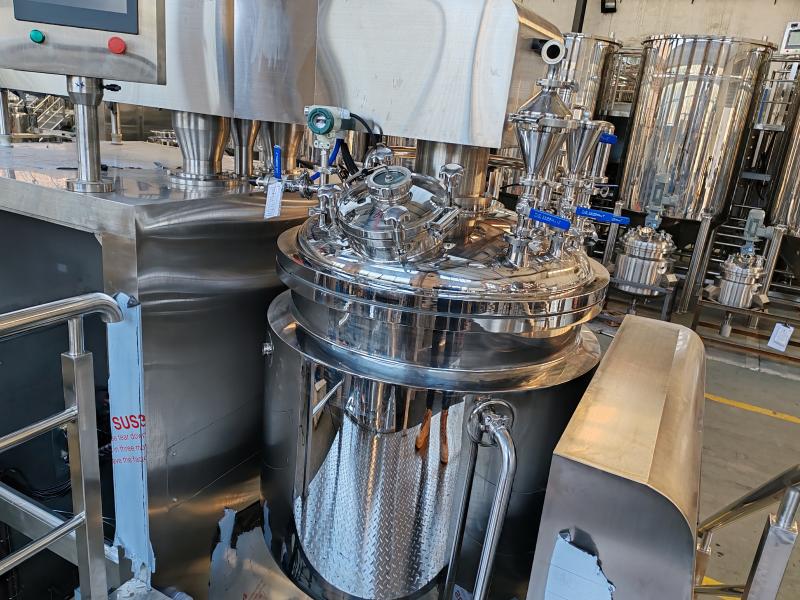

The vacuum homogenizing mixer is a highly efficient and versatile mixing device that is commonly used in various industries. It incorporates several advanced features to ensure a smooth and effective emulsification process.
One of its notable features is the use of a one-way screw belt for scraping wall mixing. This feature enables thorough blending and homogenization of substances, resulting in high-quality emulsions. Additionally, the flange pot mouth allows for easy access to the mixing chamber, simplifying the process of adding ingredients and monitoring the emulsification progress.

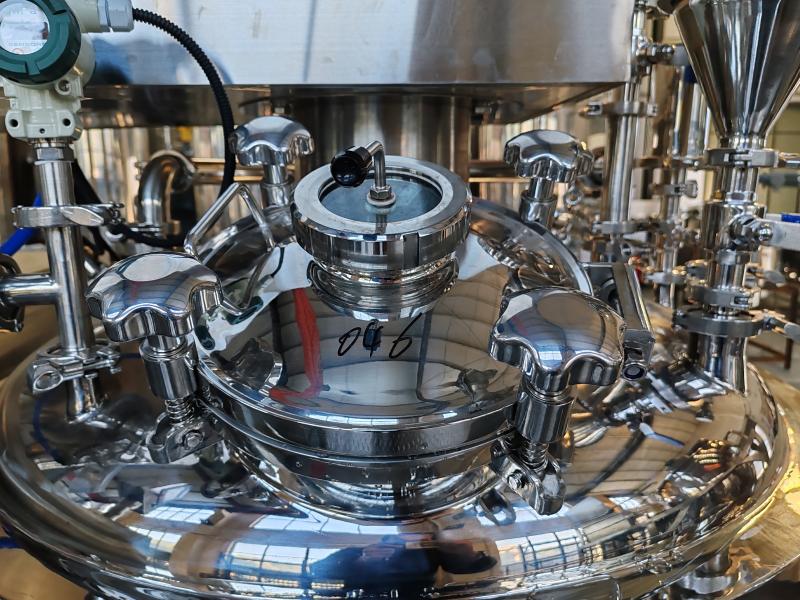

To maintain a sterile environment during the emulsification process, the Liquid washing mixer is equipped with a pressure manhole that operates at Φ350. This ensures that the mixing chamber remains sealed and free from any contaminants. The emulsifier also comes with a conventional bottom probe, allowing for accurate measurement and monitoring of different parameters.
An advantage of the Liquid washing mixer is that it does not require any pipelines, which eliminates the risk of clogging and facilitates easy cleaning and maintenance. The device is supported by four hanging ear supports, providing stability during operation and minimizing vibrations.
For efficient discharge, the vacuum homogenizing mixer is fitted with a Φ102 pneumatic tank bottom ball valve. This valve enables controlled and effective removal of the emulsified mixture. The emulsion pump, accessed through the discharge port from the rotor pump, transfers the emulsion into the inlet circulation pipe and eventually into the pan. Both the rotor pump and the emulsion pump operate pneumatically, ensuring smooth and reliable pumping performance.
The Liquid washing mixer also features water-electric (18KW) and oil-electric (12KW) heating systems, which allow for precise temperature control during the emulsification process. The heating is facilitated by conventional bottom probes, ensuring even heat distribution throughout the mixture.

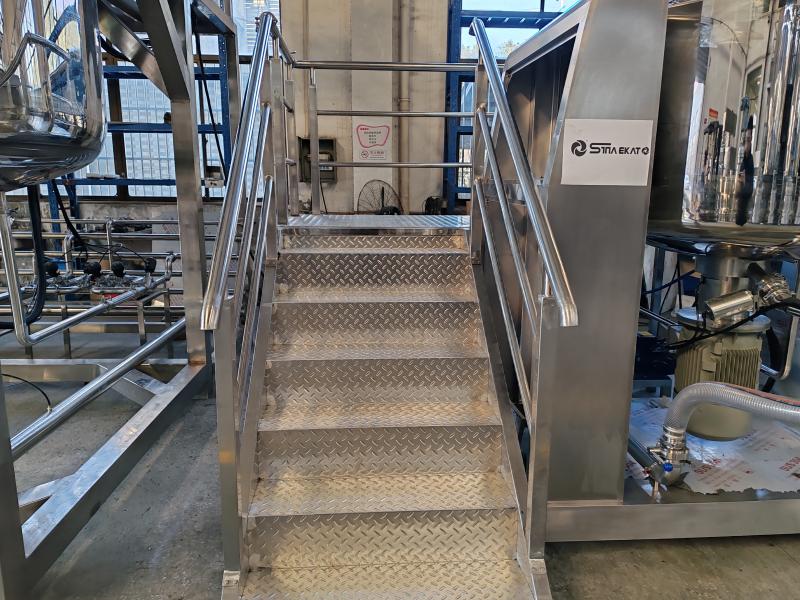

In terms of operation and control, the vacuum emulsifier has a Φ51 manual quick installation butterfly valve for discharge control. It is equipped with an independent platform/ladder stirrup for ease of access and maintenance. The device also has an independent electric cabinet and is controlled using conventional buttons.

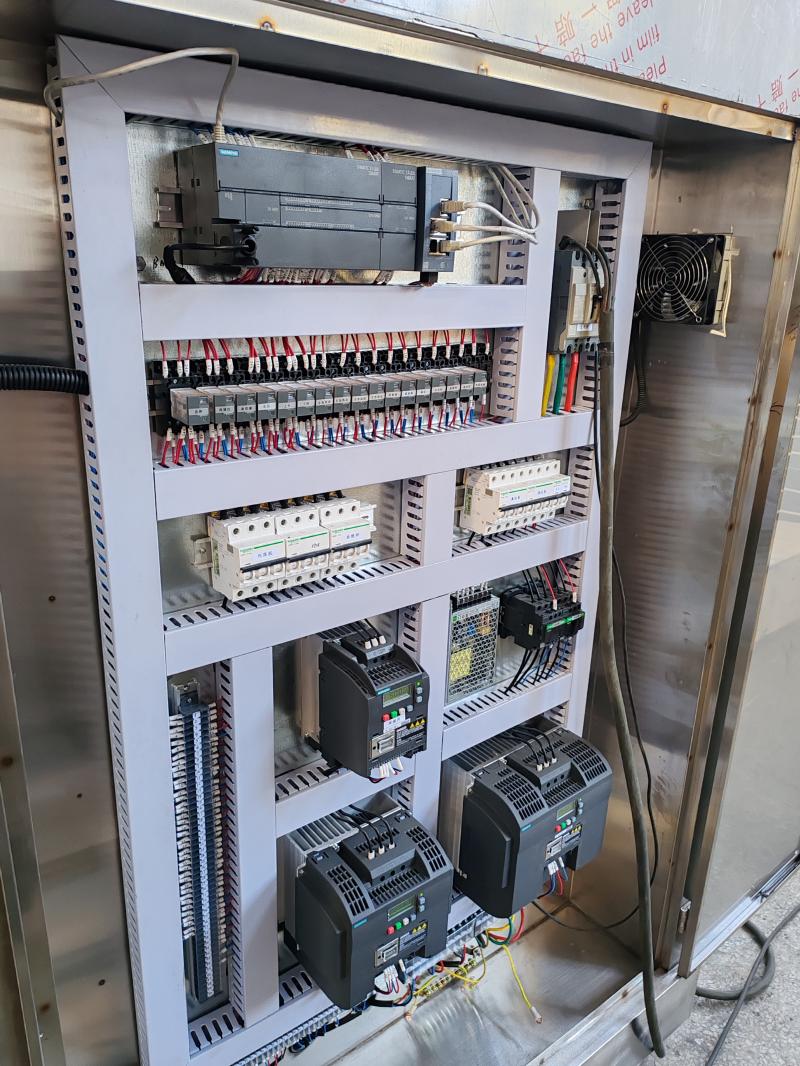

The vacuum homogenizing mixer equipped with an independent electric cabinet is a special equipment used for material mixing and homogenization in various industries. It usually consists of a main mixing vessel, a high-speed homogenizer head and an independent electrical cabinet. An independent electrical control cabinet is equipped with an electrical control system, and users can monitor and adjust various parameters of the emulsification process, such as speed, temperature, pressure, mixing time, etc. This ensures the safe and efficient operation of the Liquid washing mixer. The vacuum homogenizing mixer itself forms a vacuum environment in the mixing container, which helps to eliminate air bubbles and improve the stability and quality of emulsified materials. Commonly used in industries such as pharmaceuticals, cosmetics, food processing and chemical manufacturing where precise mixing and homogenization are required. Overall, a Liquid washing mixer with independent electrical cabinet provides a controlled and efficient solution for the emulsification process, providing precise control and automation for optimal results.

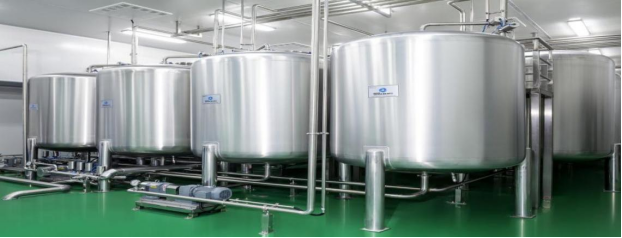

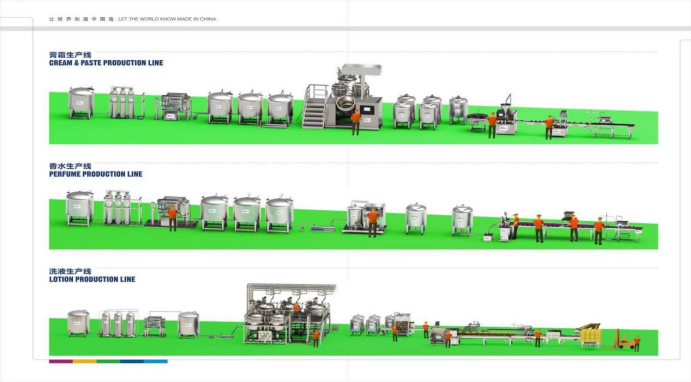

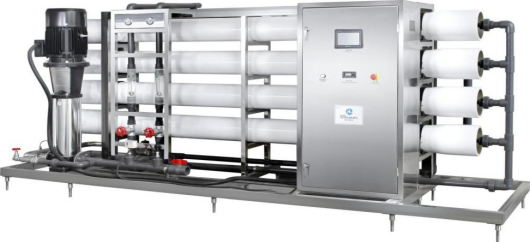

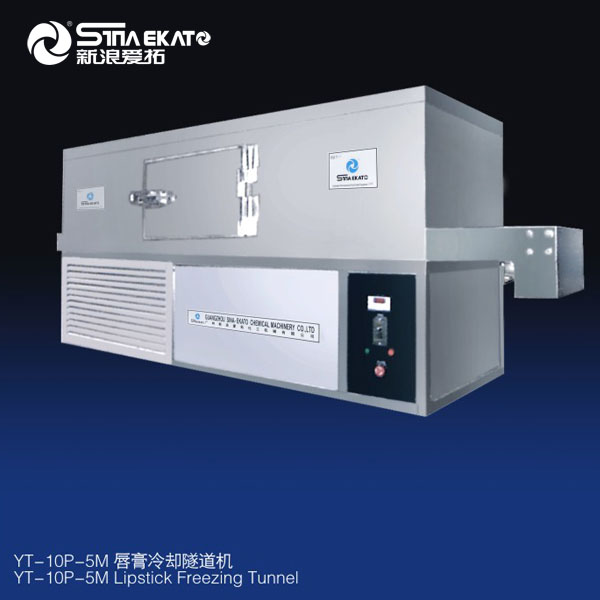

We can offer the following specialized machine systems:
With many years of experience in domestic and international installation, we have successively undertaken the integral installation of hundreds of large-sized projects.
Our team provides internationally top-ranking professional project installation experience and management experience. Our after-sales service personnel have practical experience in equipment use and maintenance and receive systemic training. We are sincerely providing customers from home and abroad with machinery & equipment, cosmetic raw materials, packing materials, technical consultation and other services.
