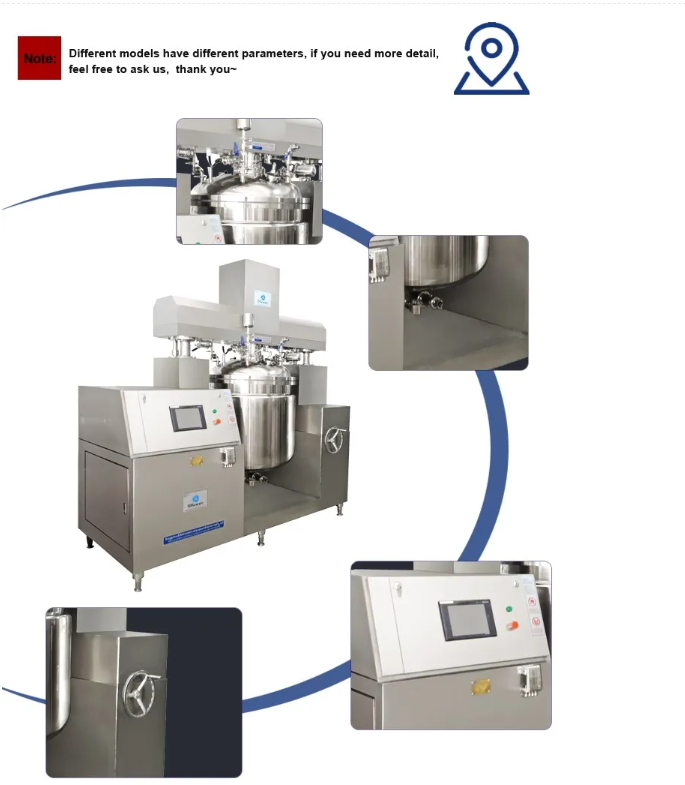

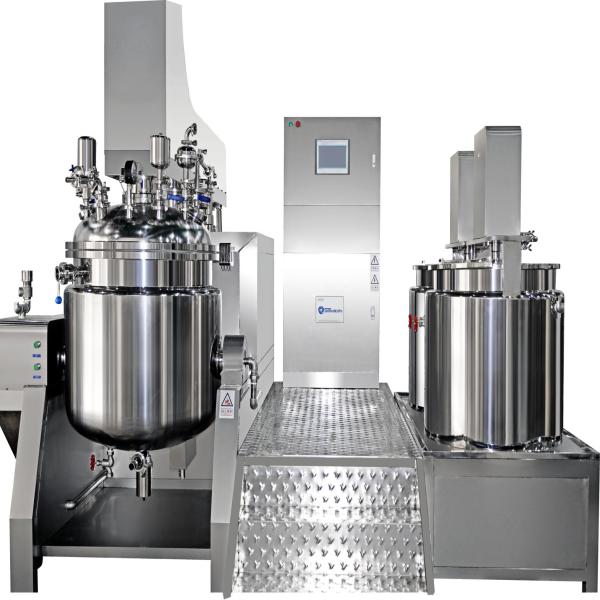

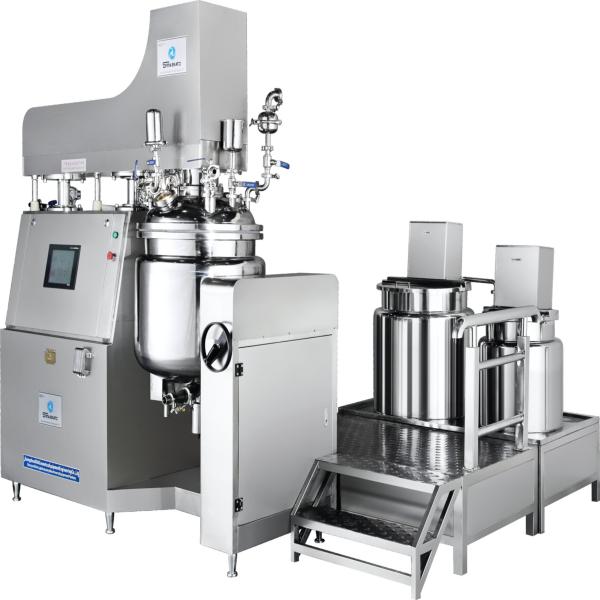

High Viscosity Vacuum Emulsifying Homogenizer
For material of super high viscosity (above 50,000 C.P.S), the high viscosity vacuum emulsifying homogenizer is highly recommended. Raw materials can be directly sucked into the groove by the machine. The machine is equipped with vacuum, hydraulic pressure, heating, cooling and other functions. Emulsifying, blending and dispersion can be completed within a short period of time.

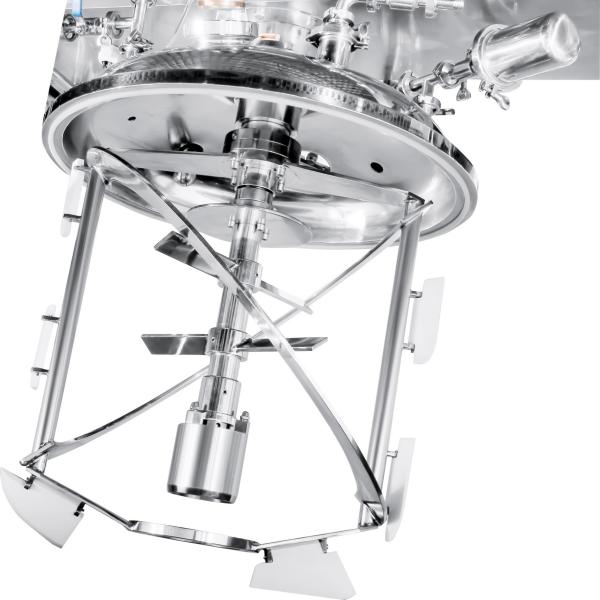

Slow speed blade type blending and high speed homogenizing systems are provided with frequency conversion control. Users can select push button control or PLC touch screen system. Parts that contact materials are made of stainless steel SS316L. The whole equipment conforms to GMP standard. Blending is carried out under vacuum to effectively ensure the emulsifying effect. The machine equipped with CIP, which can convenient user's own system to clean the machine.
Product Specification Inquiry
? 1. What is your detail of made products?
? 2. What is capacity of tank do you need?
? 3. Which heating method do you need? electric heating or steam heating?
? 4. Which type of homogenizer do you need? upper homogenizer or bottom homogenizer?
? 5. Which control do you need? PLC touch screen control or button control?

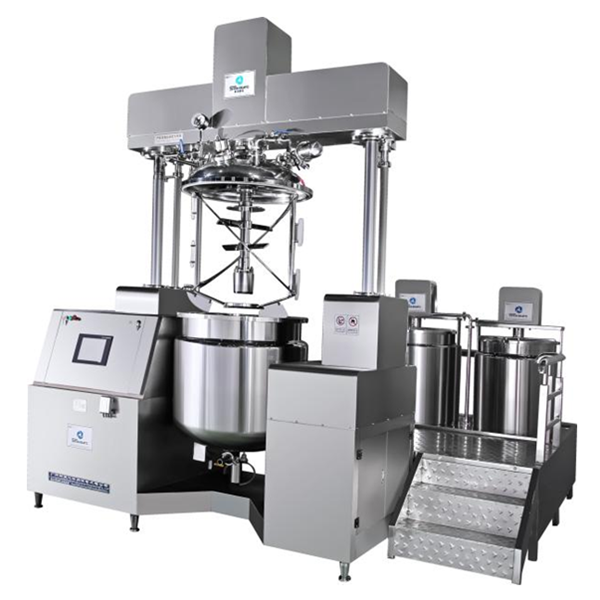

The advantage of the homogenizing emulsifier is that it can conveniently deal with a variety of product materials. The pot lid stirring homogenizer is connected with the frame, and the hydraulic system is used to lift and lift, and the cleaning is convenient to operate. The emulsifier equipment from the laboratory to the large tonnage level processing capacity uses the homogenizing way, which a good design in structure.
Production Line Solutions
✓ (1) Cosmetics cream, ointment, skin care lotion, toothpaste production line (From Washing to Packing)
✓ (2) Shampoo, liquid soap, liquid detergent, liquid wash production line
✓ (3) Perfume production line
✓ (4) Powder machines, lab equipment, and food/chemical machines
80% of the main parts of our products are provided by world's famous suppliers. During long-term cooperation and exchange with them, we have accumulated much valuable experience, so that we can provide customers with high quality products and more effective guarantee.

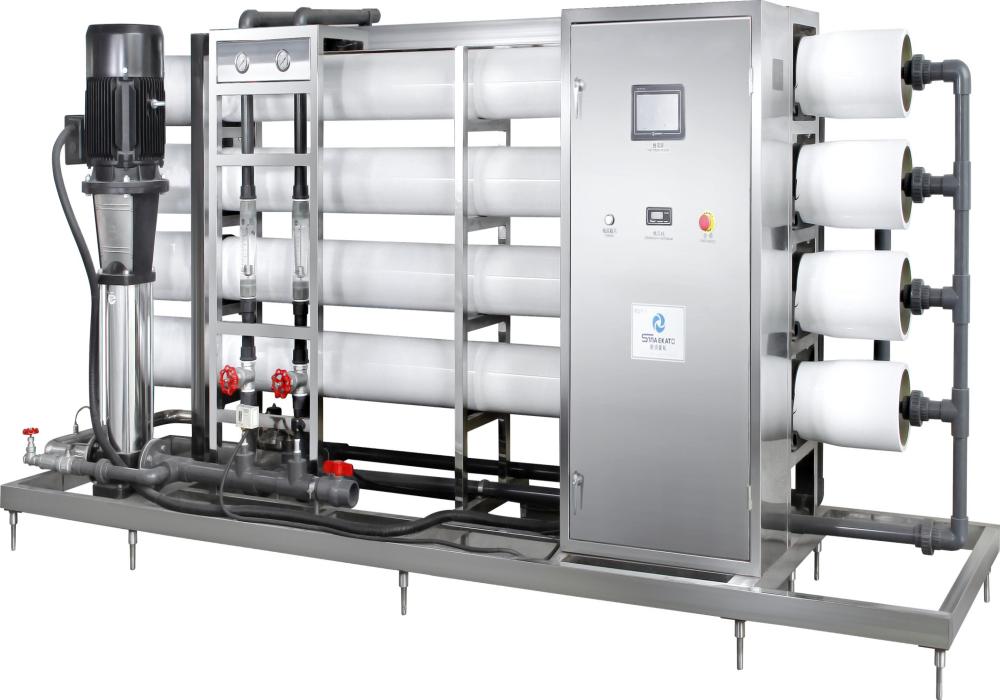

Reverse Osmosis Water Treatment

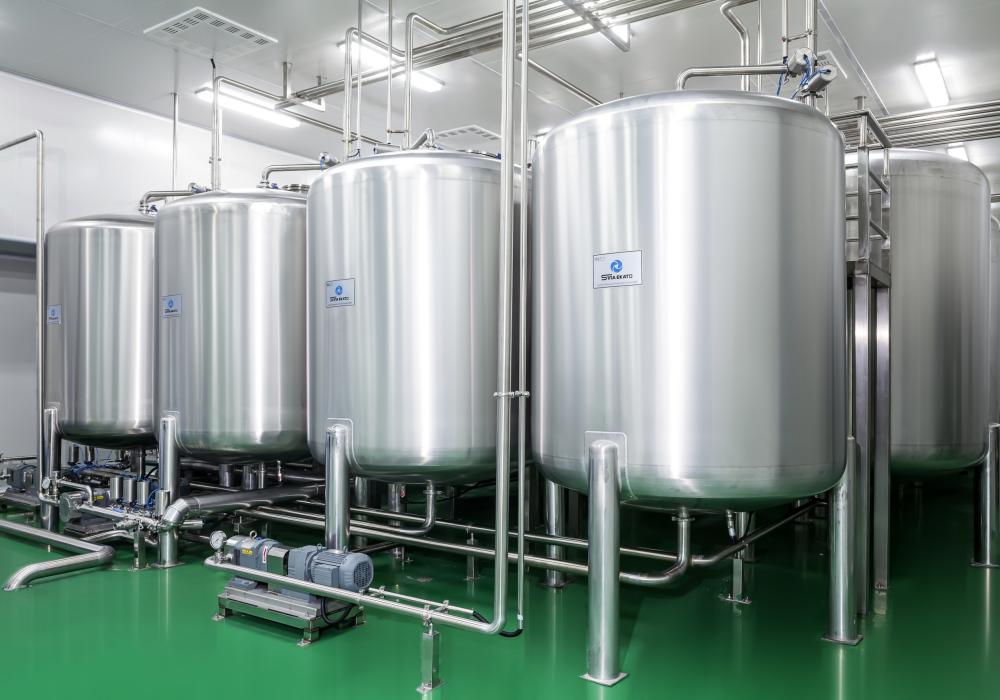

Stainless Steel Storage Tank

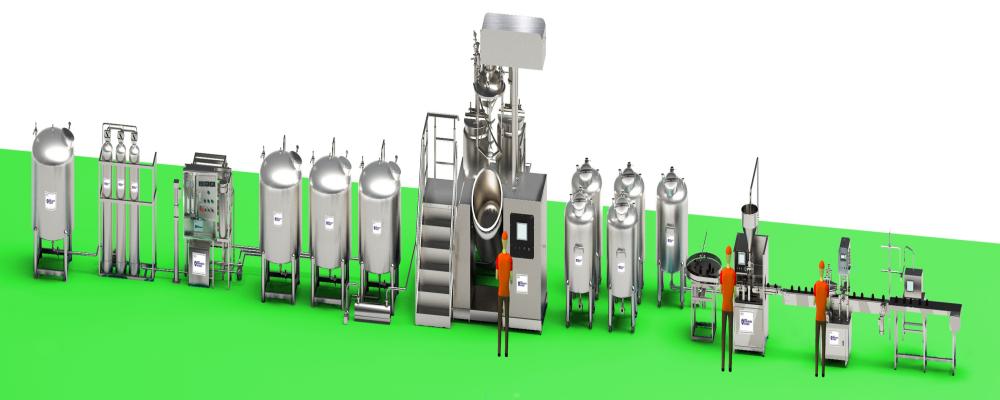

Fully Automatic Production Line
Technical Parameters
| Model |
Capacity |
Homogenizer Motor |
Stir Motor |
Dimension (mm) |
Total power (KW) |
Limit vacuum(Mpa) |
| KW |
r/min |
KW |
r/min |
Length |
Width |
Height |
Steam |
Electric |
| SME-D5 | 5L | 0.37 | 3000 | 0.18 | 63 | 1260 | 540 | 1600/1850 | 2 | 5 | -0.09 |
| SME-D10 | 10L | 0.75 | 3000 | 0.37 | 63 | 1300 | 580 | 1600/1950 | 3 | 6 | -0.09 |
| SME-D50 | 50L | 3 | 3000 | 1.1 | 63 | 2600 | 2250 | 1950/2700 | 9 | 18 | -0.09 |
| SME-D100 | 100L | 4 | 3000 | 1.5 | 63 | 2750 | 2380 | 2100/2950 | 13 | 32 | -0.09 |
| SME-D200 | 200L | 5.5 | 3000 | 2.2 | 63 | 2750 | 2750 | 2350/3350 | 15 | 45 | -0.09 |
| SME-D300 | 300L | 7.5 | 3000 | 2.2 | 63 | 2900 | 2850 | 2450/3500 | 18 | 49 | -0.085 |
| SME-D500 | 500L | 11 | 3000 | 4 | 63 | 3650 | 3300 | 2850/4000 | 24 | 63 | -0.08 |
| SME-D1000 | 1000L | 15 | 3000 | 5.5 | 63 | 4200 | 3650 | 3300/4800 | 30 | 90 | -0.08 |
| SME-D2000 | 2000L | 15 | 3000 | 7.5 | 63 | 4850 | 4300 | 3800/5400 | 40 | - | -0.08 |
| Note: In case of inconformity of the data in the table due to technical improvement or customization, the real object shall prevail. |
Frequently Asked Questions (FAQ)
Q1: What range of product viscosity can this homogenizer handle?
The machine is designed to handle materials with high viscosity, specifically those exceeding 50,000 C.P.S, making it ideal for thick creams and pastes.
Q2: Does the equipment meet sanitary standards for pharmaceutical use?
Yes, all parts that come into contact with materials are made of Stainless Steel SS316L, and the entire equipment conforms to GMP standards.
Q3: What control options are available for the operation?
Users can choose between a standard push-button control system or an advanced PLC touch screen control system based on their requirements.
Q4: Are heating and cooling functions integrated into the machine?
Yes, the machine is fully equipped with vacuum, hydraulic pressure, heating, and cooling functions to manage the entire emulsifying process.
Q5: Is it possible to customize the capacity of the tank?
We offer various standard models ranging from 5L laboratory sizes to 2000L industrial production units, and we can accommodate customization based on technical needs.
Q6: How does the vacuum system benefit the emulsifying process?
Blending under vacuum prevents air from entering the mixture, ensuring a smooth, bubble-free, and high-quality emulsified final product.
