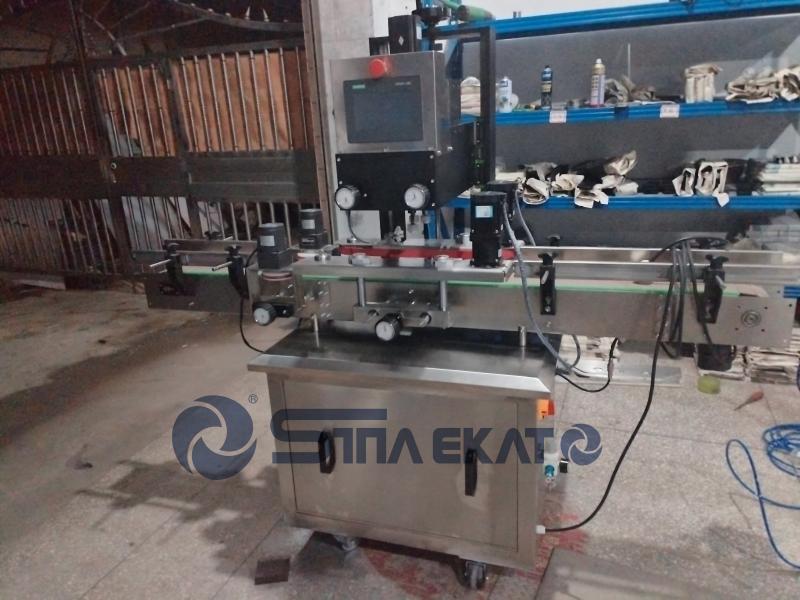

The automatic capping machine completes the capping operation efficiently through automatic conveyor belt, positioning, tightening and other steps. The parts in contact with the product are made of Swedish 316 stainless steel and processed by CNC machine tools to ensure that the surface roughness is less than 0.8.
🧴
Automatic capping machine is widely used in the packaging line of shampoo, conditioner, body wash, skin care products, etc., suitable for plastic bottle containers of different specifications.
Technical Specifications
| No |
Description |
Specifications |
| 1 |
Servo capping machine |
Servo motor screw cap (automatic torque control when the set torque is reached); The bottle is driven by a stepper motor; The cylinder presses down on the cap; Optical fiber sensor location. |
| 2 |
Cap range |
30-120mm |
| 3 |
Bottle height |
50-200mm |
| 4 |
Capping speed |
0-80 bottles per minute |
| 5 |
Work condition |
Power: 220V 2KW air pressure: 4-6KG |
| 6 |
Dimension |
2000*1000*1650mm |
Hair Conditioner & Shampoo Capping System
Key Components & Systems:
✔
Conveying system: Automatically sends the cap to the capping position.
✔
Positioning system: Accurate positioning of the bottle body and cap to ensure accurate capping.
✔
Screw cap: Screw or loosen the cap according to the preset torque.
✔
Transmission system: Drives the equipment to operate and ensures the coordination of all components.
✔
Control system: Control equipment operation and parameter adjustment through PLC and touch screen.
Core Advantages:
⭐
High efficiency: Greatly improve production efficiency.
⭐
Precision: Ensure consistent capping force to improve sealing.
⭐
Flexible: Adaptable to a variety of bottle and cap shapes.
⭐
Reliable: Reduce human error and improve product consistency.
Main Component List
| No |
Name |
Pcs |
Original |
| 1 |
Power driver |
1 |
TECO China |
| 2 |
7 inch touch screen |
1 |
TECO China |
| 3 |
Pneumatic element set |
1 |
China |
| 4 |
Photoelectric switch |
1 |
Omron Japan |
| 5 |
Servo motor |
4 |
TECO China |
| 6 |
Bottle feeding and clamping motor |
2 |
TECO China |
CE Certificate
Frequently Asked Questions (FAQ)
Q1: What materials are used for the machine parts in contact with products?
A1: All parts in contact with the product are made of Swedish 316 stainless steel, ensuring high hygiene standards and a surface roughness of less than 0.8.
Q2: What is the production capacity of the automatic capping machine?
A2: The machine can reach a capping speed of 0 to 80 bottles per minute, depending on the bottle and cap specifications.
Q3: How does the machine ensure the correct torque for different caps?
A3: The machine uses a servo capping motor which allows for precise automatic torque control. Once the preset torque is reached, the screwing action stops automatically.
Q4: Is the equipment compatible with different bottle sizes?
A4: Yes, the machine is highly flexible. it supports a cap range of 30-120mm and a bottle height range of 50-200mm.
Q5: Which industries can benefit from this capping machine?
A5: It is widely used in the cosmetics and personal care industries for packaging shampoo, hair conditioner, body wash, and various skin care products.
Q6: What type of control system is integrated into the machine?
A6: The machine features a PLC control system with a 7-inch TECO touch screen for easy operation and parameter adjustment.
