⚙️ Technical Specifications
| Power supply | AC220V 50 Hz 1200W |
| Speed of labeling | 30m/min (related to label size) |
| Labeling accuracy | ±1mm |
| Label the maximum diameter | 350 mm |
| Roller diameter | 76.2mm |
| Maximum width of label (height) | 200mm |
| Diameter of applicable bottle | 20 ~ 100 mm |
| Conveying to ground height | 860mm |
| Machine dimension | 3000*1800*1500(mm) |
| Machine weight | about 520KG |
🧩 Main Components & Brands
| No |
Name |
Qty |
Instruction |
Brand |
| 1 | Servo motor & Driver | 2 sets | 750W | Taiwan Taida  |
| 2 | PLC | 2 pcs | CPU212 | Germany Siemens  |
| 3 | Label electronic eye | 2 pcs | / | Germany Leuze  |
| 4 | Touch screen | 1 pc | 7 inches | Taiwan Weinview  |
| 10 | Bottle-split motor | 2 sets | 25W | Germany JSCC  |
| 15 | Ac adapter | 1 pc | 220V | Delixi  |
⭐ Key Features
✅ Imported microcomputer control system for precise operations.
✅ Super large touch screen, designed for easy and intuitive user operation.
✅ High-speed Servo motor adoption to enhance labeling precision at high speeds.
✅ Memory storage for over 100 groups of labeling parameters for fast product switching.
✅ Construction with high-class stainless steel and anodized aluminum alloy (GMP compliant).
✅ Stable machine performance with rust-proof materials for long-term durability.
📸 Product Gallery

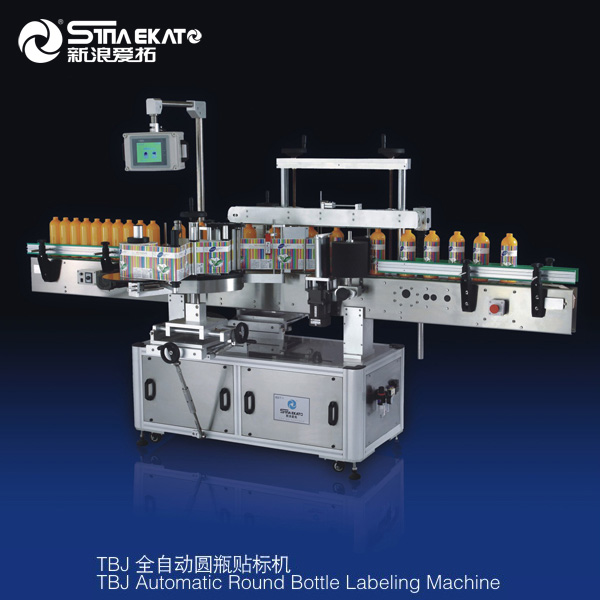

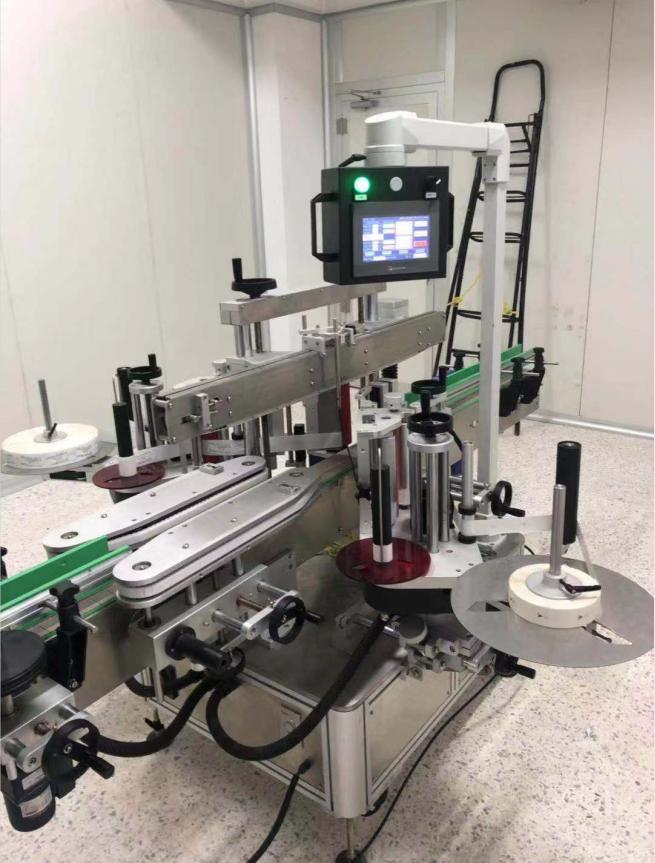

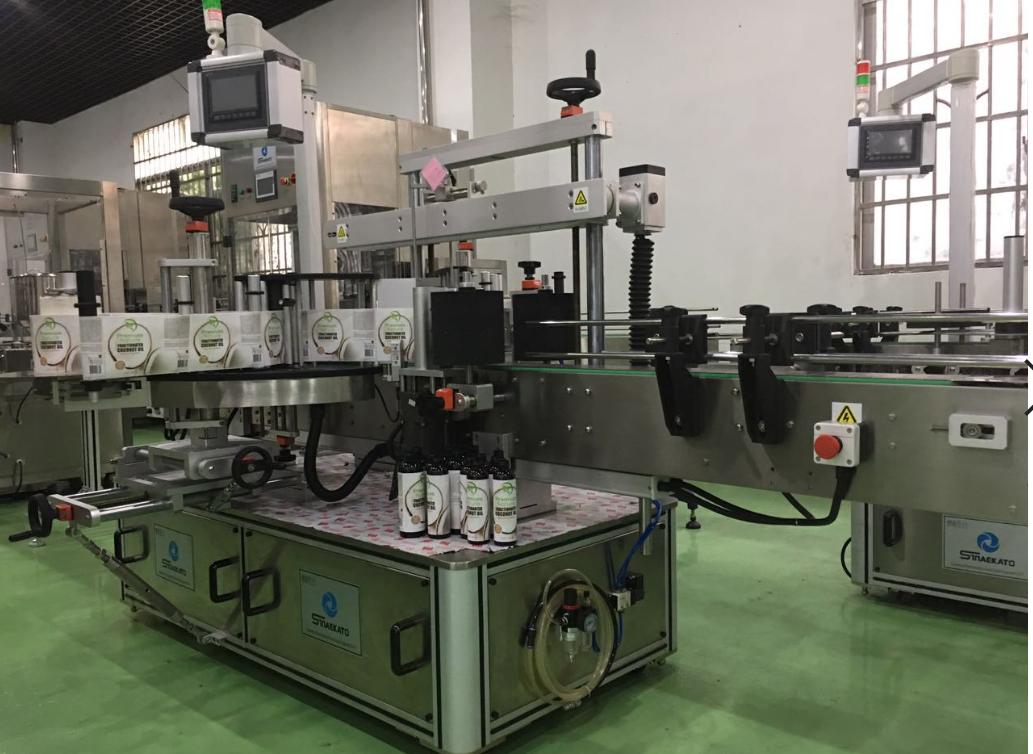

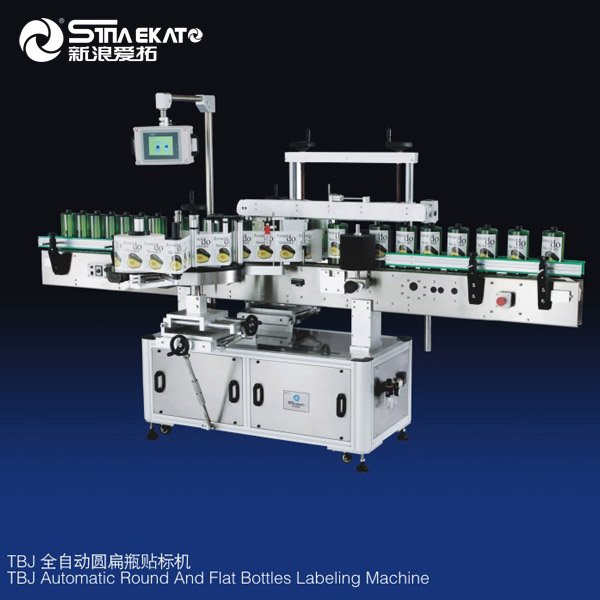

This automatic labeling machine is suitable for round bottles of different sizes and materials. It is widely used for round and conical bottles in food, cosmetics, electronics, daily necessities, medicine, and other industries. Featuring automatic photoelectric tracking, the machine ensures no labeling occurs when no object is present.
Using well-known brand components and high-quality stainless steel, it guarantees reliable quality. The high-resolution, large-size man-machine interface with PLC control and touch operation makes it intuitive and easy to use. Positioning labeling allows for precise placement, either one label at a time or symmetrically before and after. The production line can be integrated with existing conveyors or combined with specialized feeding equipment to meet specific customer needs.
Frequently Asked Questions
❓ What types of bottles can this machine handle?
The machine is designed for round and conical bottles of various materials with diameters ranging from 20mm to 100mm.
❓ How accurate is the labeling process?
The machine achieves a high labeling accuracy of ±1mm thanks to the integrated servo motor and PLC control system.
❓ Does it support fast product changeovers?
Yes, the system can store more than 100 groups of labeling parameters in its memory, allowing for rapid switching between different product samples.
❓ Is the machine compliant with industry standards?
Absolutely. The entire machine is constructed from high-grade stainless steel and anodized aluminum alloy, conforming fully to GMP requirements.
❓ Can this machine be integrated into a larger production line?
Yes, it is designed to be versatile and can be connected to existing production lines or used as a standalone unit with additional feeding equipment.
❓ What happens if a bottle is missing on the conveyor?
The machine features automatic photoelectric tracking and identification, meaning it will not dispense a label if no object is detected.
