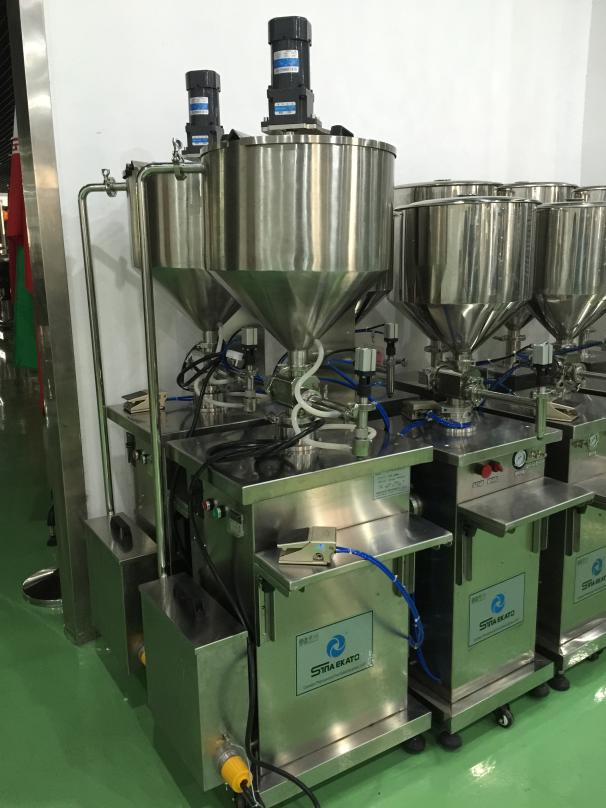

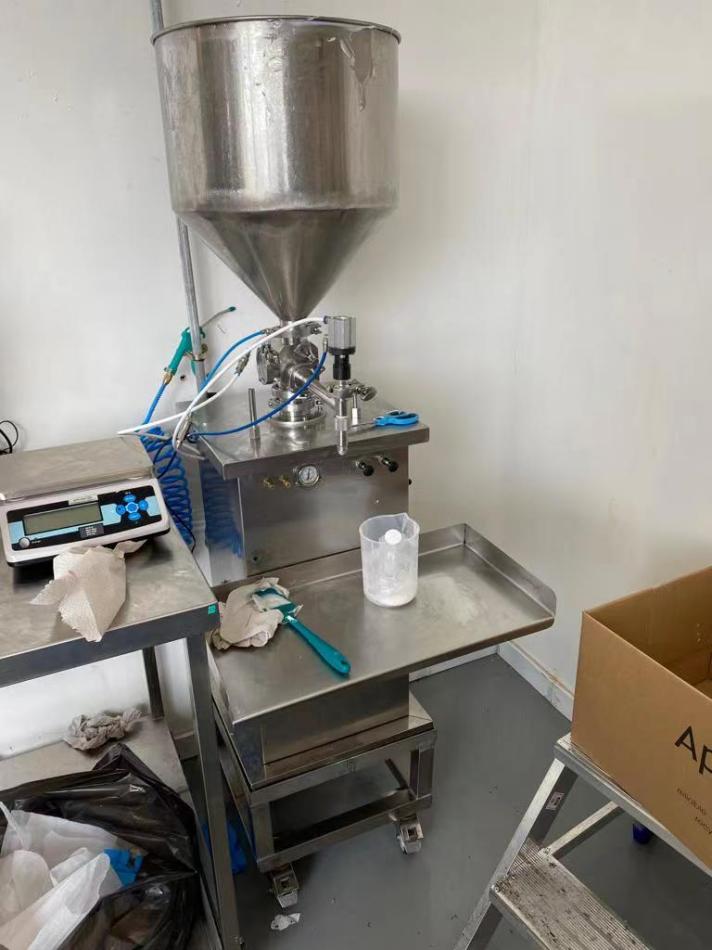

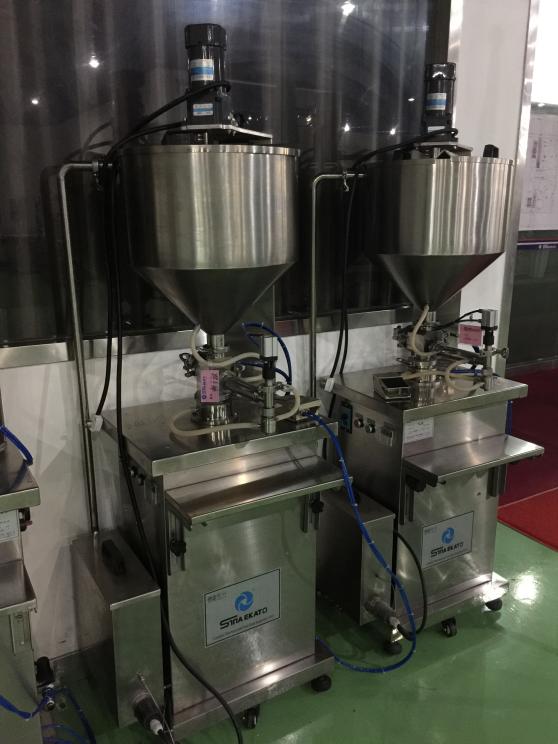

The machine adopts imported mechanical parts, and the piston and cylinder are made of stainless steel and polytetrafluoroethylene.
✓
Excellent imported aluminum components and excellent mechanical design.
✓

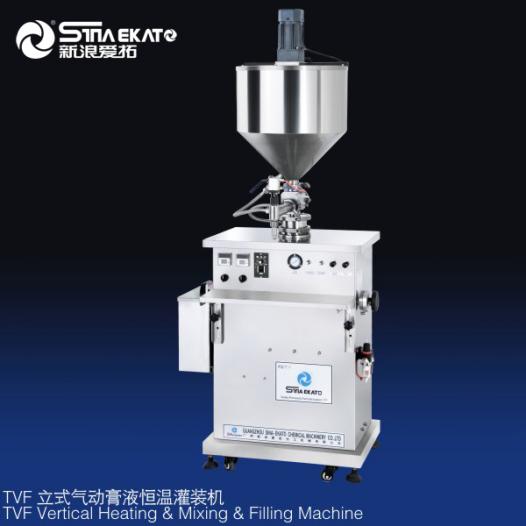

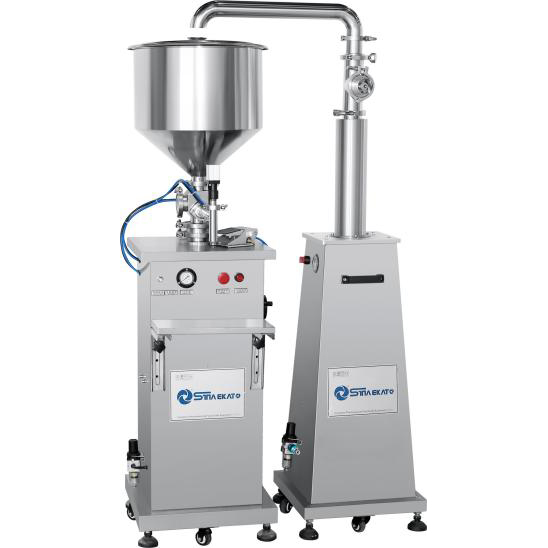

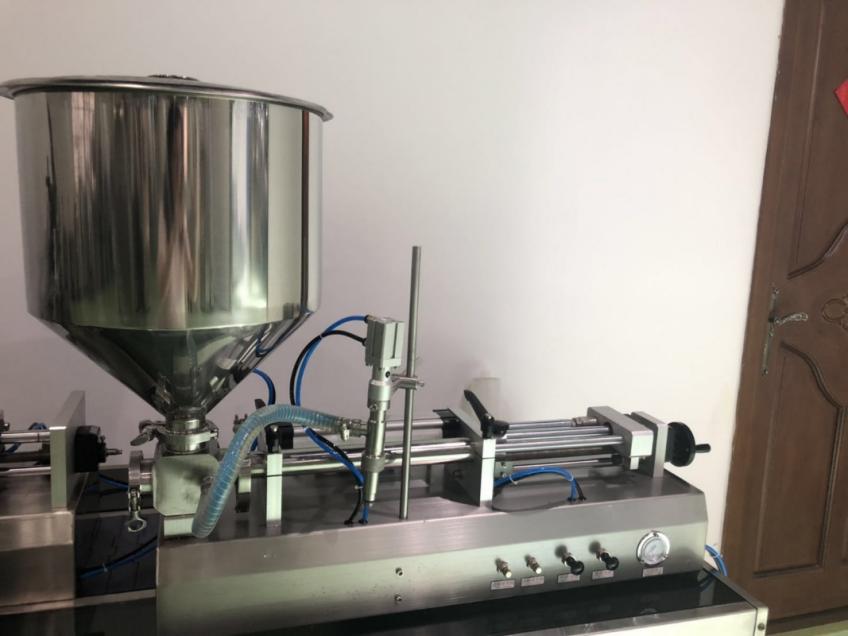

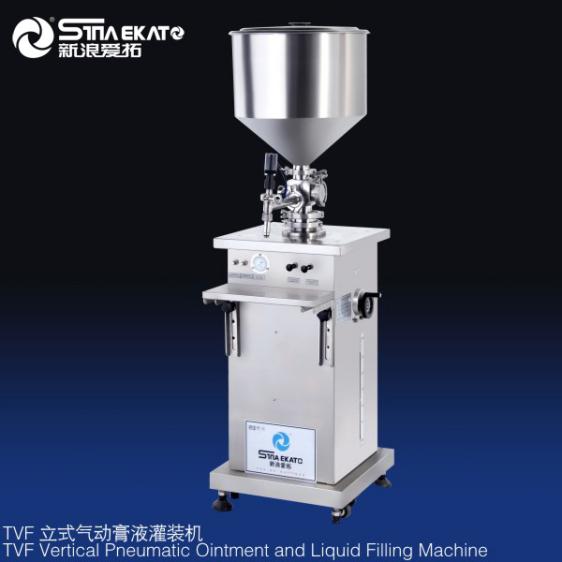

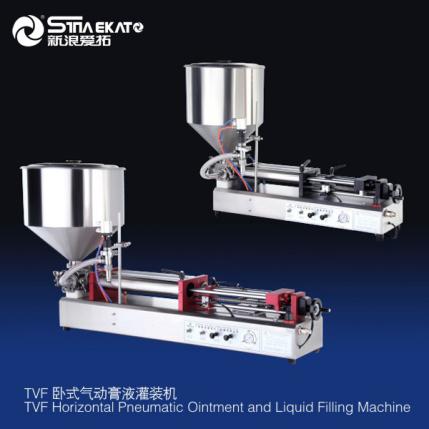

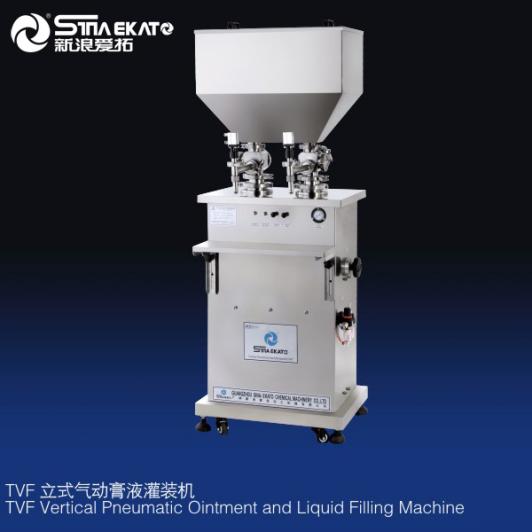

New vertical horizontal design, light and convenient, automatic material extraction, eliminating the trouble of frequent feeding of vertical hopper.
✓

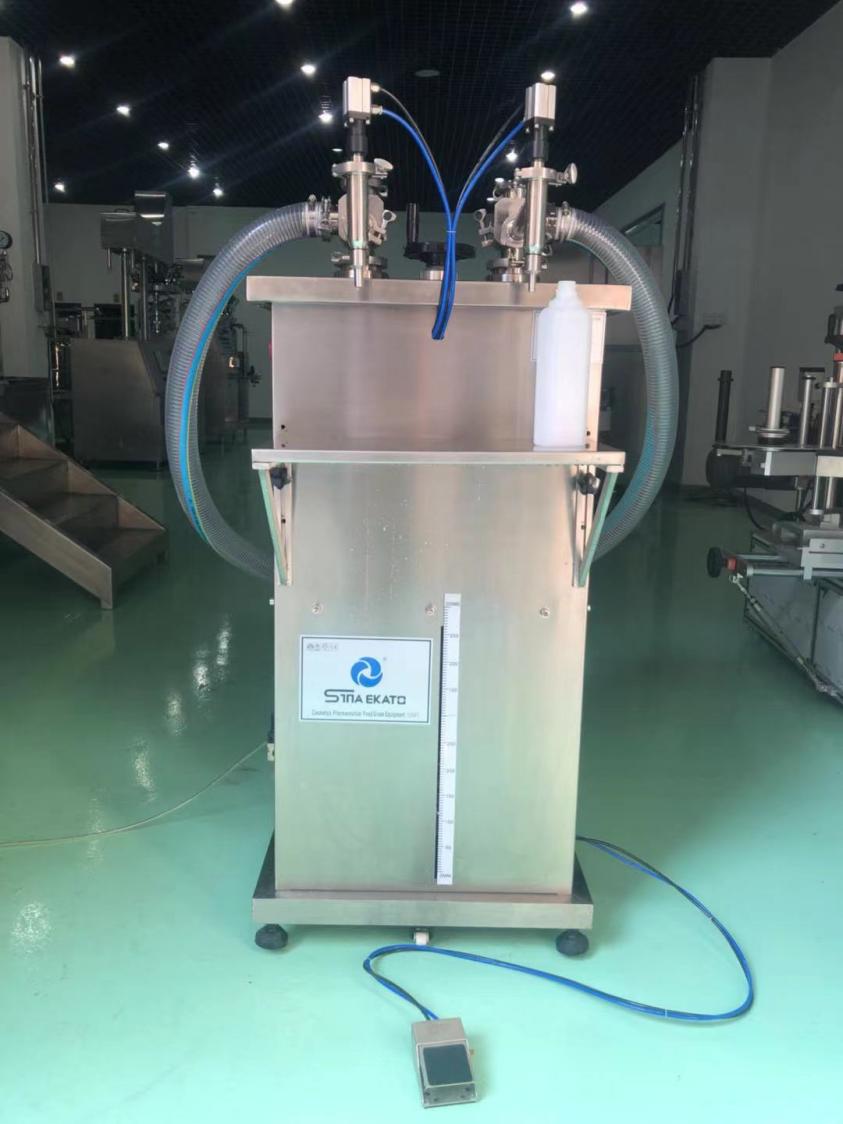

Manual and automatic switching function. When the machine is in the "automatic" state, the machine will automatically carry out continuous filling according to the set speed. When the machine is in the "manual" state, the operator steps on the step plate to achieve filling.
✓
The material cylinder and tee are connected by handcuffs, which is convenient for disassembly and assembly without any special tools, so the cleaning is very convenient.
✓
Equipped with an anti-drip filling system: the cylinder moves up and down to drive the bulkhead. When the cylinder is downward, the valve is opened for filling. When the cylinder is upward, the valve is closed to stop filling and eliminate dripping.
| Model |
Filling Volume |
Filling Speed |
Air Supply |
| TVF-5 |
5-60ml |
0-45bot/min |
0.2-0.6Mpa |
| TVF-10 |
10-120ml |
0-35bot/min |
0.2-0.6Mpa |
| TMF-25 |
25-250ml |
0-30bot/min |
0.2-0.6Mpa |
| TVF-50 |
50-500ml |
0-30bot/min |
0.2-0.6Mpa |
| TVF-100 |
100-1000ml |
0-25bot/min |
0.2-0.6Mpa |
| TVF-250 |
250-2500ml |
0-18bot/min |
0.2-0.6Mpa |
| TVF-500 |
500-5000ml |
0-12bot/min |
0.2-0.6Mpa |
Frequently Asked Questions
What materials are used to construct the machine's core parts?
The piston and cylinder are constructed from high-quality stainless steel and polytetrafluoroethylene (PTFE) for durability and hygiene.
How does the manual/automatic switching function work?
In "automatic" mode, the machine fills continuously at a set speed. In "manual" mode, the operator controls each fill using a foot pedal.
Is the machine easy to clean between batches?
Yes, the material cylinder and tee use handcuff-style connections, allowing for quick disassembly and cleaning without special tools.
How does the machine prevent dripping during filling?
It features an anti-drip system where a cylinder-driven bulkhead shuts the valve immediately after filling to eliminate drips and wire drawing.
What is the required air pressure for operation?
The machine requires an air supply pressure between 0.2 and 0.6 Mpa for optimal performance.
Can the filling volume be adjusted?
Yes, different models offer various filling ranges, from as low as 5ml up to 5000ml, depending on the specific machine model chosen.
